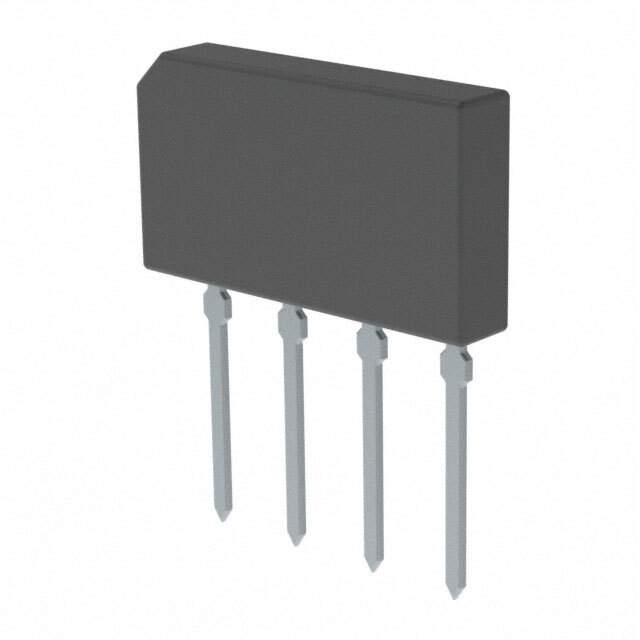

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer GeneSiC Semiconductor
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 800V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Maximum) at If 1V at 2A
Current - Reverse Leakage at Vr 10μA at 800V
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package 4-SIP, GBL
Supplier Device Package GBL
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1176943-GBL08
Manufacturer Homepage www.wontop.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian GBL08 CAD Model

Description

The GeneSiC Semiconductor GBL08 is a single-phase diode with a maximum peak reverse voltage of 800V and an average rectified current of 4A. It is mounted through a through-hole package style and can operate in a wide temperature range of -55°C to 150°C.

  • Package: 4-SIP GBL package
  • Packaging: Available in bulk packaging
  • Supply and Demand: Limited
  • Manufacturer Pack Quantity: 500
  • Voltage Forward: 1V @ 2A
  • Current Reverse Leakage @ Vr: 10μA @ 800V
