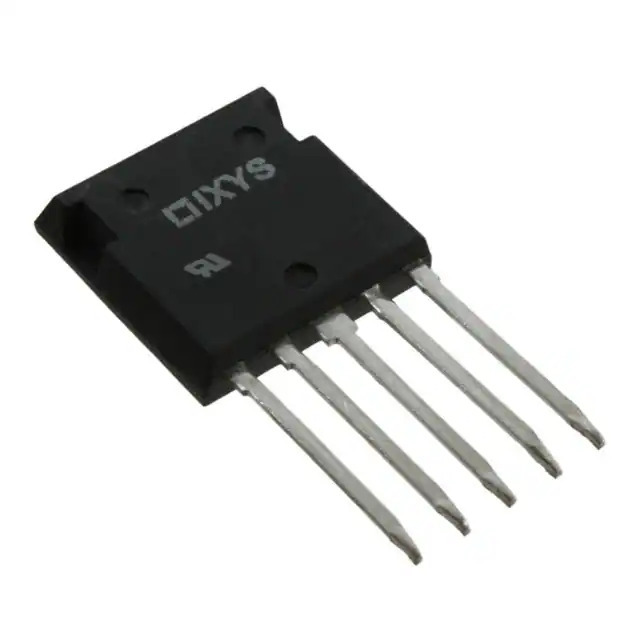

FUO22-16N IXYS
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr IXYS
Series -
Package Tube
Product Status Active
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Max) 1.6 kV
Current - Average Rectified (Io) 28 A
Voltage - Forward (Vf) (Max) @ If 1.62 V @ 30 A
Current - Reverse Leakage @ Vr 10 µA @ 1600 V
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case i4-Pac™-5
Supplier Device Package ISOPLUS i4-PAC™
Base Product Number FUO22
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1368061-FUO22-16N
Ultra Librarian 3D Model Ultra Librarian FUO22-16N CAD Model

Description

The FUO22-16N is a bridge rectifier diode from IXYS. It comes in a compact i4-Pac™-5 package, making it suitable for space-constrained applications.

  • Average Rectified Current: 28A
  • Peak Reverse Voltage: 1.6kV
  • Forward Voltage: 1.62V @ 30A
  • Reverse Leakage Current: 10μA @ 1600V
  • Type: Three-phase
  • Temperature Range: -55°C to 175°C
  • REACH: Unaffected
  • ECCN: EAR99
