Same model may have multiple batches, images only for reference.

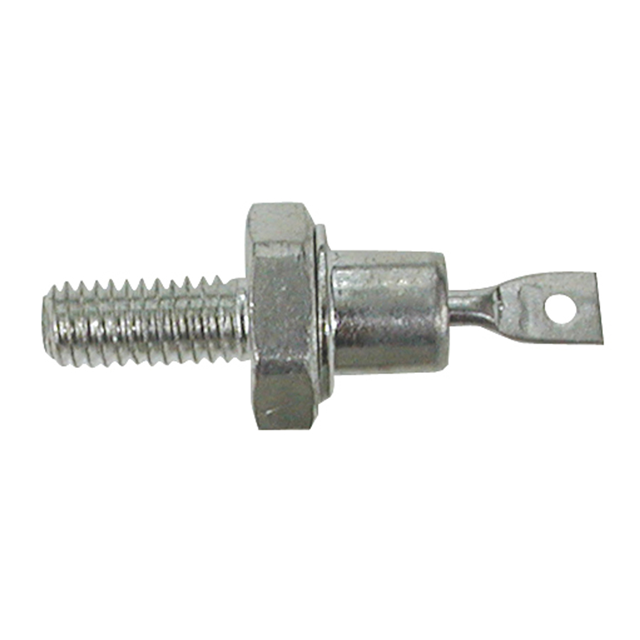

1N5831 Real Image
Same model may have multiple batches, images only for reference.

1N5831

Part No 1N5831
Manufacturer GeneSiC Semiconductor
Catalog Diodes, Rectifiers - Single
Description 25 Amp Schottky Barrier Rectifier 20 to 35 Volts | DIODE SCHOTTKY 35V 25A DO4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer GeneSiC Semiconductor
Packaging Bulk
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 35V
Current - Average Rectified (Io) 25A
Voltage - Forward (Vf) (Maximum) at If 580mV at 25A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 2mA at 20V
Mounting Style Chassis, Stud Mount
Manufacturer Package DO-203AA, DO-4, Stud
Supplier Device Package DO-4
Operating Temperature - Junction -55°C ~ 150°C
Family Part Number 1N5831
Manufacturer Pack Quantity 250
MSL Level 1 (Unlimited)
Win Source Part Number 1122037-1N5831
Manufacturer Homepage www.mccsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1N5831 CAD Model

Description

The 1N5831 is a fast-recovery Schottky diode manufactured by GeneSiC Semiconductor.

  • Type: Fast-Recovery Schottky Diode
  • Features: Low forward voltage drop
  • Operating Temperature: -55°C to 150°C
  • Application: High-power applications
  • Package: DO-4
  • Suitable for: Power supplies and motor drives
