FTDI FT4232HQ-REEL USB Interface IC

The FT4232HQ-REEL is a flagship product from FTDI, Future Technology Devices International Ltd, renowned for its high-quality and versatile USB interface solutions. This particular integrated circuit is part of the expansive USB Hi-Speed series, designed to facilitate seamless and efficient USB connectivity for a range of electronic devices and systems.

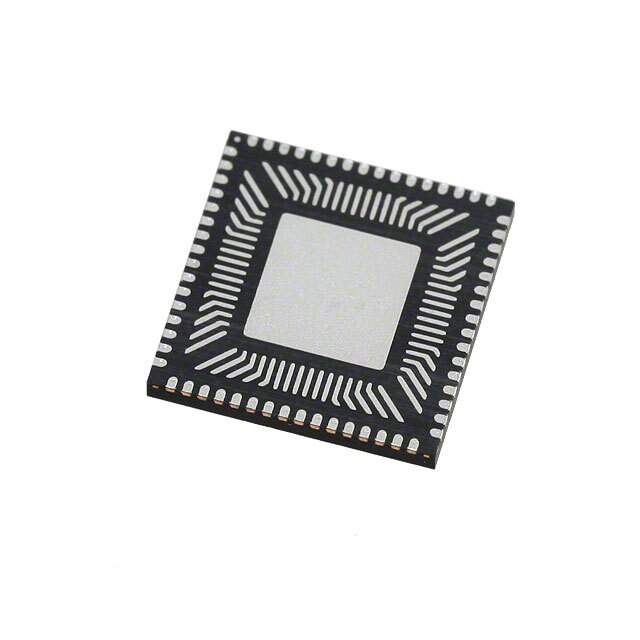

The FT4232HQ-REEL is a USB 2.0 Hi-Speed (480 Mb/s) to UART/MPSSE IC, which offers a quartet of high-speed UART (Universal Asynchronous Receiver/Transmitter) ports. This feature-rich component is packaged in a compact 64-pin QFN casing, making it an ideal choice for space-constrained applications that require multiple serial interfaces or parallel/SPI/I2C interfaces.

One of the standout features of the FT4232HQ-REEL is its ability to be configured in various modes, thanks to its Multi-Protocol Synchronous Serial Engine (MPSSE). This allows the device to handle serial communication protocols such as JTAG, I2C, SPI, and others, making it an incredibly versatile tool for developers working on a wide range of applications, from industrial control systems to consumer electronics.

The device is also designed for ease of use, supporting FTDI's royalty-free VCP (Virtual COM Port) and D2XX drivers, which provide direct access to the USB device via a DLL application programming interface. This simplifies the process of integrating the IC into existing systems and ensures compatibility with various operating systems, including Windows, Linux, and Mac OS.

Moreover, the FT4232HQ-REEL supports a comprehensive set of USB transfer types (control, bulk, interrupt, isochronous) and offers adjustable receive and transmit buffer timeout. It is also equipped with an integrated 1024-bit internal EEPROM, which can be programmed over USB, eliminating the need for additional programming voltages or setup, thus simplifying the design and reducing the overall bill of materials.

Available in tape and reel packaging, the FT4232HQ-REEL is optimized for production volume and is well-suited for applications in telecommunications, automotive interfaces, point-of-sale systems, and more. With its robust design and advanced features, the FT4232HQ-REEL from FTDI remains a top choice for developers seeking a high-performance USB to serial/MPSSE interface solution.
