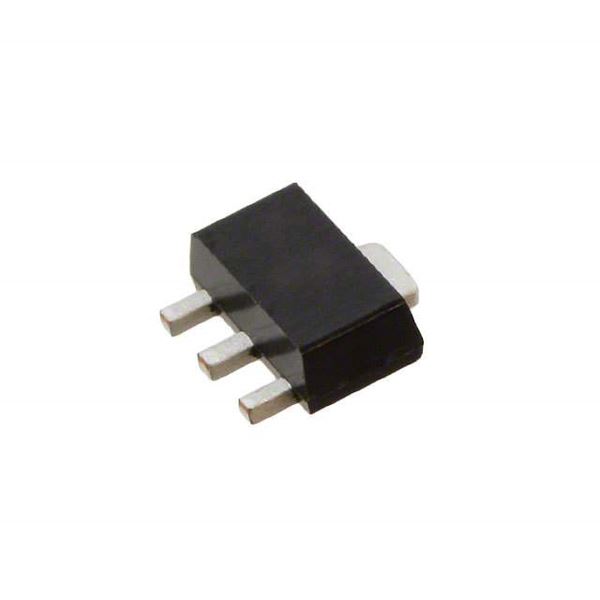

MMG3001NT1 Freescale Semiconductor - NXP
Same model may have multiple batches, images only for reference.

MMG3001NT1

Part No MMG3001NT1
Manufacturer Freescale Semiconductor - NXP
Catalog RF Amplifiers
Description IC AMP RF GP 3600MHZ 5.6V SOT-89
Datasheet
MMG3001NT1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer NXP
Packaging Reel - TR
Status Obsolete(EOL)
Frequency 40MHz to 3.6GHz
P1dB 18.5dBm (70.8mW)
Gain 20dB
Noise Figure 4.1dB
RF Type General Purpose
Supply Voltage - Operating 5.6V
Operating Supply Current 58mA
Test Frequency 900MHz
Case / Package SOT-89-4
Win Source Part Number 124615-MMG3001NT1
Ultra Librarian 3D Model Ultra Librarian MMG3001NT1 CAD Model

Description

The NXP MMG3001NT1 is a general-purpose RF amplifier with a gain of 20dB and a noise figure of 4.1dB.

  • Frequency range: 40MHz to 3.6GHz
  • P1dB: 18.5dBm (70.8mW)
  • Applications: RF/IF and RFID
  • Case: SOT-89-4
  • Operating voltage: 5.6V
  • Operating current: 58mA
  • Description: It is suitable for use in applications that require high gain and low noise figure.
