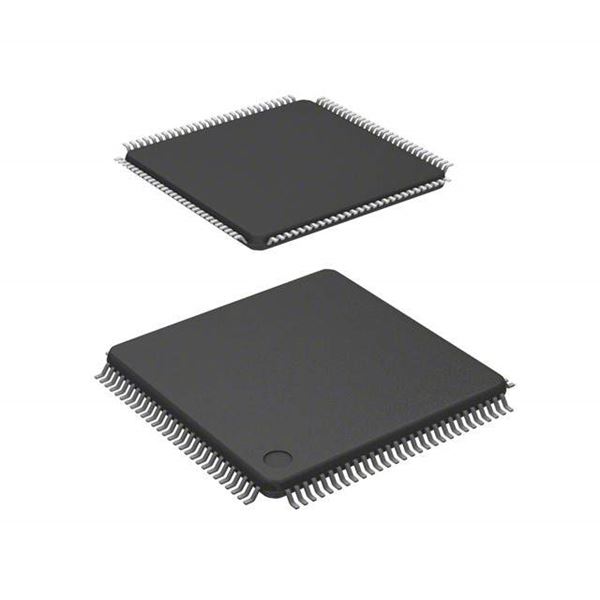

MC9S12DG256MPV Freescale Semiconductor - NXP
Same model may have multiple batches, images only for reference.

MC9S12DG256MPV

Part No MC9S12DG256MPV
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 256KB FLASH 112LQFP
Datasheet
MC9S12DG256MPV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Active
Core Processor HCS12
Part Core Size 16-Bit
Speed(Frequency) 25MHz
Number of I/O 91
Program Memory Size 256KB (256K x 8)
Program Memory Type FLASH
EEPROM Size 4K x 8
Data RAM Size 12K x 8
Supply Voltage - Operating 2.35 V to 5.25 V
Data Converters A/D 16x10b
Temperature Range - Operating -40°C to 125°C (TA)
Case / Package 112-LQFP (20x20)
Win Source Part Number 074785-MC9S12DG256MPV
Ultra Librarian 3D Model Ultra Librarian MC9S12DG256MPV CAD Model

Description

The MC9S12DG256MPV is a 16-bit microcontroller from NXP.

  • Core Processor: HCS12
  • Package: 112-LQFP (20x20)
  • I/O Pins: 91
  • Program Memory Size: 256KB
  • Program Memory Type: FLASH
  • EEPROM Size: 4K x 8
  • Data Converters: A/D 16x10b
  • Operating Temperature Range: -40°C to 125°C (TA)
  • Supply Voltage Range: 2.35 V to 5.25 V
  • Status: Active
