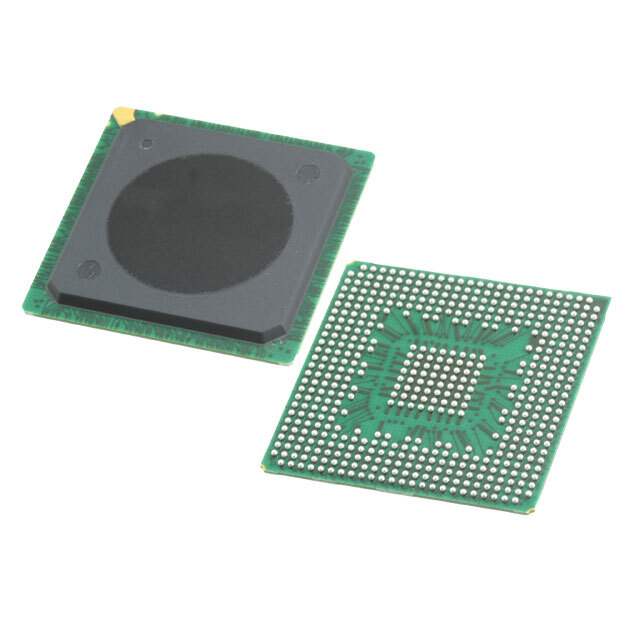

KMPC8247ZQTMFA Real Image
Same model may have multiple batches, images only for reference.

KMPC8247ZQTMFA

Part No KMPC8247ZQTMFA
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description IC MPU MPC82XX 400MHZ 516BGA
Datasheet
KMPC8247ZQTMFA Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Obsolete(EOL)
Core Processor PowerPC G2_LE
Number of Cores/Bus Width 1 Core, 32-Bit
Speed(Frequency) 400MHz
Co-Processors/DSP Communications; RISC CPM
RAM Controllers DRAM, SDRAM
Graphics Acceleration No
Ethernet 10/100 Mbps (2)
USB USB 2.0 (1)
Voltage - I/O 3.3V
Temperature Range - Operating 0°C to 105°C (TA)
Security Package / Case 516-BBGA
Case / Package 516-FPBGA (27x27)
Additional Interfaces I2C, SCC, SMC, SPI, UART, USART
Win Source Part Number 143774-KMPC8247ZQTMFA
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian KMPC8247ZQTMFA CAD Model

Description

The NXP KMPC8247ZQTMFA is an integrated circuit that is obsolete (EOL).

  • Supply and Demand: Limited
  • Core Processor: PowerPC G2_LE
  • RAM Controllers: DRAM and SDRAM
  • Interfaces: USB 2.0, I2C, SCC, SMC, SPI, UART, and USART
  • Package: 516-FPBGA (27x27)
  • Speed (Frequency): 400MHz
