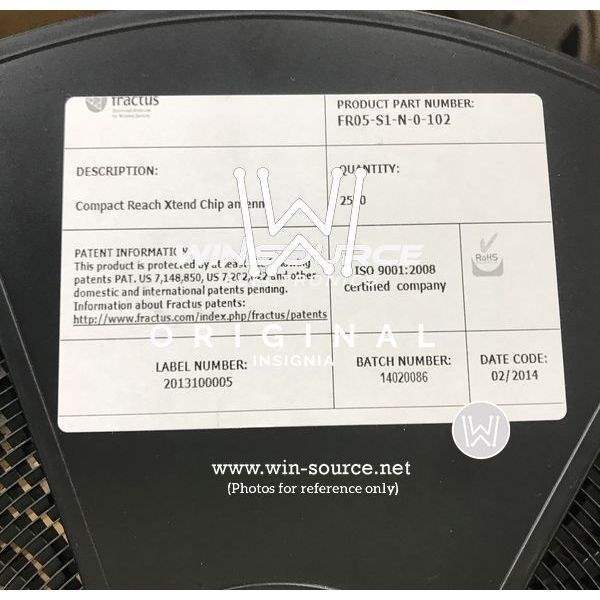

FR05-S1-N-0-102 Fractus FR05-S1-N-0-102 label picture FR05-S1-N-0-102 real image
Same model may have multiple batches, images only for reference.
FR05-S1-N-0-102 Fractus FR05-S1-N-0-102 label picture FR05-S1-N-0-102 real image
FR05-S1-N-0-102 Fractus FR05-S1-N-0-102 label picture FR05-S1-N-0-102 real image
Same model may have multiple batches, images only for reference.

FR05-S1-N-0-102

Part No FR05-S1-N-0-102
Manufacturer Fractus
Catalog HOT - SALES and EOL Components
Description COMPACT REACH XTEND - 102 / Antenna Chip 1.7dBi Gain 2400MHz 2-Pin SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Fractus Antennas S.L.
Packaging Reel
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.45GHz
Frequency Range 2.4GHz ~ 2.5GHz
Antenna Type Chip
Number of Bands 1
VSWR 2
Gain 1.7dBi
Termination Solder
Mounting Style SMD
Height (Maximum) 0.079" (2.00mm)
Applications Bluetooth, WLAN, Zigbee
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 32762-FR05-S1-N-0-102
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name FR05-S1-N-0-102
Introduction Date October 29, 2010
ECCN EAR99
Country of Origin Republic of Korea
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian FR05-S1-N-0-102 CAD Model

Description

The FR05-S1-N-0-102 is a chip antenna from Fractus Antennas S.L. It is a part of the FR05 series and is commonly used in various applications like Bluetooth, WLAN, and Zigbee. The antenna has a frequency range of 2.4GHz ~ 2.5GHz and a gain of 1.7dBi. The device is RoHS compliant and has a popularity of 67%. The antenna is available in a reel packaging with an MSL level of 3.
