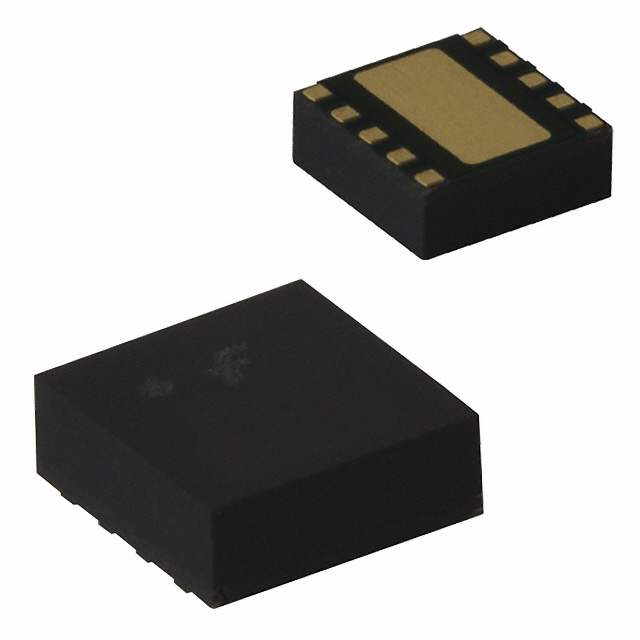

RMPA0959 Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

RMPA0959

Part No RMPA0959
Manufacturer Fairchild/ON Semiconductor
Catalog RF Amplifiers
Description IC MOD RF POWER AMP 10PIN 4X4LCC
Datasheet
RMPA0959 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Frequency 824MHz to 849MHz
Gain 25dB to 26.5dB
Noise Figure 4dB
RF Type Cellular, CDMA, CDMA2000, AMPS, IS-95
Supply Voltage - Operating 3 V to 4.2 V
Operating Supply Current 62mA
Case / Package 11-LCC (4x4)
Win Source Part Number 124664-RMPA0959
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Automotive, Industrial, Power Management, Consumer Electronics, Portable Devices
Ultra Librarian 3D Model Ultra Librarian RMPA0959 CAD Model

Description

The Fairchild/ON Semiconductor RF amplifier is a high-performance amplifier designed for use in cellular, CDMA, CDMA2000, AMPS, and IS-95 applications.

  • Frequency Range: 824MHz to 849MHz
  • Gain: 25dB to 26.5dB
  • Noise Figure: 4dB
  • Operating Voltage: 3V to 4.2V
  • Current: 62mA
  • Package: 11-LCC (4x4) case
  • Applications: Automotive, industrial, power management, consumer electronics, and portable devices.
  • Status: Obsolete
  • Supply and Demand: Limited
  • Popularity: Medium
