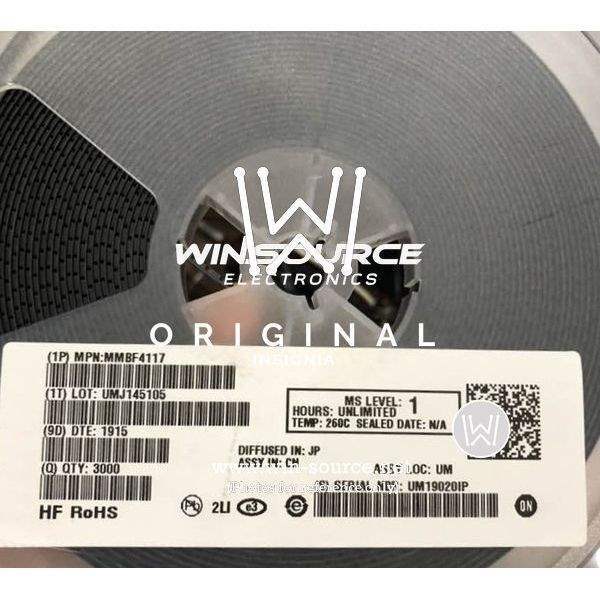

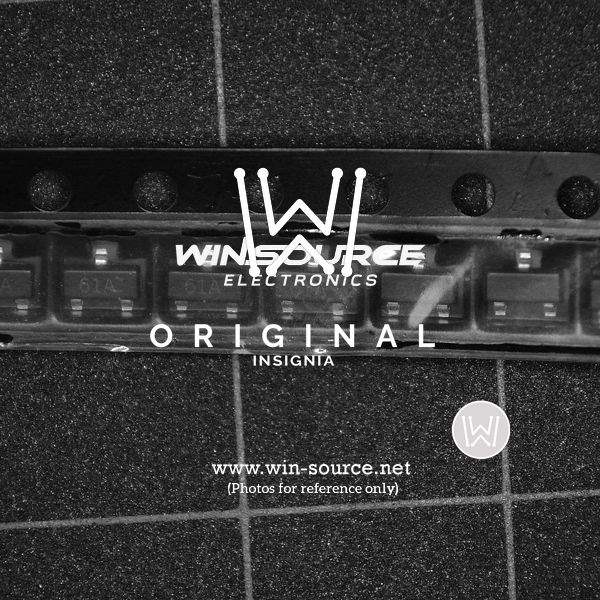

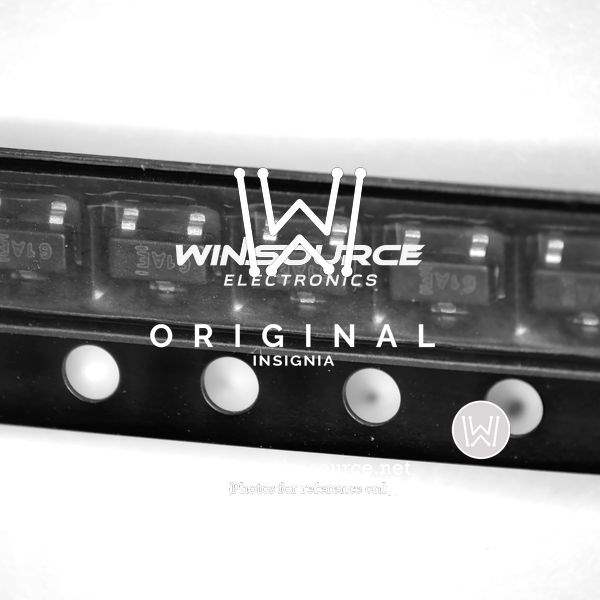

MMBF4117 Fairchild/ON Semiconductor MMBF4117 label picture MMBF4117 Real Image1 MMBF4117 Real Image2
Same model may have multiple batches, images only for reference.
MMBF4117 Fairchild/ON Semiconductor MMBF4117 label picture MMBF4117 Real Image1 MMBF4117 Real Image2
MMBF4117 Fairchild/ON Semiconductor MMBF4117 label picture MMBF4117 Real Image1 MMBF4117 Real Image2
Same model may have multiple batches, images only for reference.

MMBF4117

Part No MMBF4117
Manufacturer Fairchild/ON Semiconductor
Catalog JFETs (Junction Field Effect)
Description JFET N-CH 40V 0.225W SOT23
Datasheet
MMBF4117 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity N-Channel
Voltage - Breakdown (V(BR)GSS) 40V
Current - Drain (Idss) @ Vds (Vgs=0) 30μA @ 10V
Voltage - Cutoff (VGS off) @ Id 600mV @ 1nA
Max Input Capacitance 3pF @ 10V
Maximum Power Dissipation 225mW
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-23-3
Win Source Part Number 023697-MMBF4117
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Audio, Signal Processing
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian MMBF4117 CAD Model

Description

The Fairchild/ON Semiconductor MMBF4117 is an N-Channel SMD (SMT) transistor.

  • Manufacturer: Fairchild/ON Semiconductor
  • Win Source Part Number: 023697-MMBF4117
  • Maximum Power Dissipation: 225mW
  • Drain-Source Breakdown Voltage: 40V
