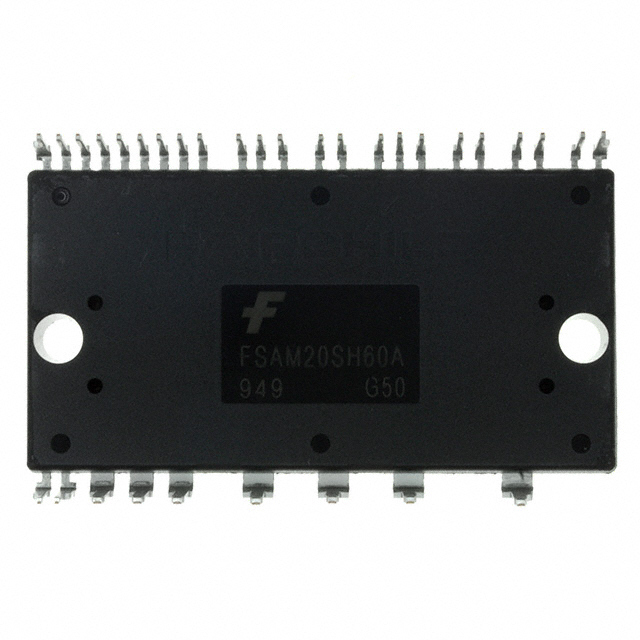

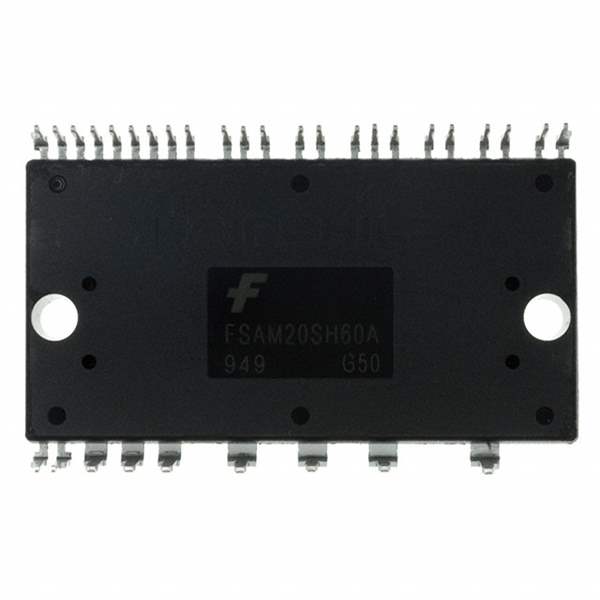

FSAM20SH60A

Part No FSAM20SH60A
Manufacturer Fairchild/ON Semiconductor
Catalog Power Drivers - Modules
Description SMART POWER MODULE 20A SPM32-AA / IPM IGBT 600V 20A 32-Pin SPM32-AA Tube
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Series Motion SPM 2
Type IGBT
Configuration 3 Phase
Current 20A
Voltage 600V
Voltage - Isolation 2500Vrms
Package 32-PowerDIP Module (1.370", 34.80mm)
Win Source Part Number 774777-FSAM20SH60A
Popularity Medium
Supply and Demand Status Limited
Quantity per package 48
Family Name FSAM20SH60A
Introduction Date September 26, 2002
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian FSAM20SH60A CAD Model

Description

The FSAM20SH60A is a Smart Power Module (SPM) manufactured by Fairchild/ON Semiconductor. It integrates multiple power semiconductors and driver circuits into a single package, simplifying the design and assembly of motor drives and inverter systems. This SPM is designed for applications requiring efficient and reliable power switching.

Applications:

  • Motor drives for appliances (e.g., washing machines, refrigerators)
  • Industrial motor control
  • Inverter systems for renewable energy (e.g., solar inverters)
  • Servo drives
  • Variable Frequency Drives (VFDs)

Features:

  • Integrated gate drivers
  • Integrated bootstrap diodes
  • Overcurrent protection
  • Undervoltage lockout (UVLO) protection
  • Short-circuit protection
  • Thermal shutdown protection
  • 600V blocking voltage
  • 20A current rating

Benefits:

  • Reduces PCB space and component count, simplifying system design
  • Enhances system reliability with integrated protection features
  • Improves energy efficiency in motor drives and inverters
  • Simplifies thermal management
  • Provides robust protection against overcurrent, short circuits, and over-temperature conditions

The FSAM20SH60A SPM offers a comprehensive set of protection features, including overcurrent, short-circuit, undervoltage lockout, and thermal shutdown, which safeguard the module and the driven load from potential damage. The integration of gate drivers and bootstrap diodes reduces the need for external components, further streamlining system design. Its compact size and robust protection features make it a popular choice for efficient and reliable power switching applications.
