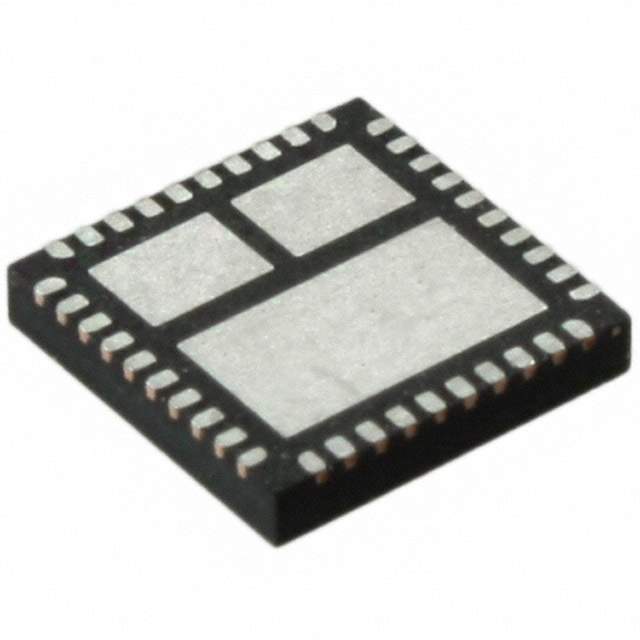

FDMF3030 Real Image
Same model may have multiple batches, images only for reference.

FDMF3030

Part No FDMF3030
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Full, Half - Bridge Drivers
Description Extra-Small, High-Performance, High-Frequency, DrMOS Module
Datasheet
FDMF3030 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Fairchild/ON Semiconductor
Series PowerTrench, SyncFET
Packaging Reel - TR
Output Configuration Half Bridge
Applications Synchronous Buck Converters
Interface PWM
Load Type Inductive
Technology DrMOS
Rds On (Typ) 900 mOhm LS, 800 mOhm HS
Output Current per Channel 50A
Operating Supply Voltage 4.5 V ~ 5.5 V
Voltage - Load 3 V ~ 24 V
Operating Temperature Range -40°C ~ 150°C (TJ)
Features Bootstrap Circuit, Diode Emulation, Status Flag
Fault Protection Over Temperature, Shoot-Through, UVLO
Mounting SMD
Package 40-PowerTFQFN
Manufacturer Package 40-PQFN (6x6)
Win Source Part Number 1173823-FDMF3030
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Limited
Family Name FDMF3030
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2026
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDMF3030 CAD Model

Description

The FDMF3030 is a DrMOS power module designed for use in synchronous buck converters.

  • Output Configuration: half-bridge
  • Voltage Load Range: 3 V to 24 V
  • Peak Output Current: 50A
  • Package: 40-PowerTFQFN package
  • Operating Temperature Range: -40°C to 150°C
  • Features: bootstrap circuit, diode emulation, and status flag
  • Fault Protection: over temperature, shoot-through, and UVLO
  • Rds On (Typ) Low-Side: 900 mOhm
  • Rds On (Typ) High-Side: 800 mOhm
  • Popularity: popular choice for applications where high efficiency and high power density are required
  • Compliance: compliant with halogen-free standards
  • Supply and Demand Status: limited
