MP86956GMJ-Z Monolithic Power Systems Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

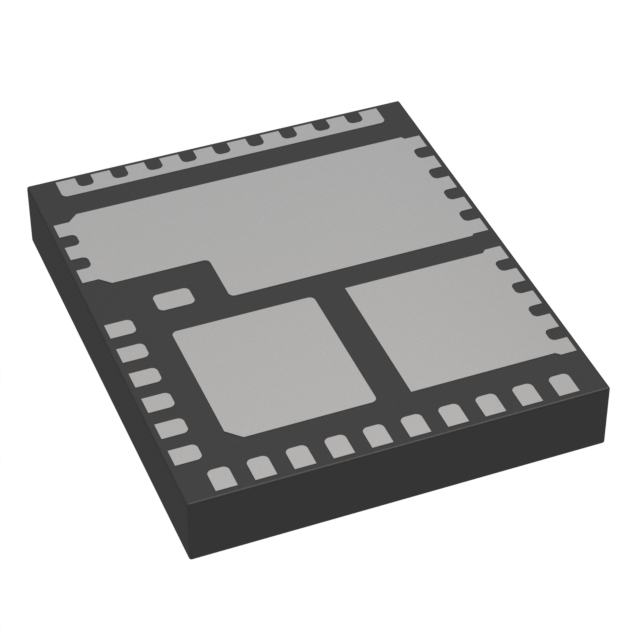

MP86956GMJ-Z

Part No MP86956GMJ-Z
Manufacturer Monolithic Power Systems Inc.
Catalog PMIC - Full, Half - Bridge Drivers
Description IC HALF BRIDGE DRIVER 70A 41LGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Tape & Reel (TR);Cut Tape (CT);
Product Status Active
Output Configuration Half Bridge
Applications Buck Converters
Interface PWM
Load Type Inductive
Technology NMOS
Current - Output / Channel 70A
Current - Peak Output 125A
Voltage - Supply 3V ~ 3.6V
Voltage - Load 3V ~ 16V
Operating Temperature -40°C ~ 125°C (TJ)
Features Bootstrap Circuit, Diode Emulation, Status Flag
Fault Protection Current Limiting, Over Temperature, Short Circuit, UVLO
Mounting Type Surface Mount
Package / Case 41-PowerVFLGA
Supplier Device Package 41-LGA (5x6)
Ultra Librarian 3D Model Ultra Librarian MP86956GMJ-Z CAD Model

Description

The 960670-MP86956GMJ-Z is an integrated circuit designed for power management in full half-bridge driver applications.

  • Application: Power management in full half-bridge driver applications
  • Series: Intelli-Phase™
  • Suitable for: Use in buck converters
  • Features: Bootstrap circuit, diode emulation, and status flag
  • Mounting: Surface mountable
  • Package: 41-PowerVFLGA
  • Package Type: Tape and reel, containing 5,000 pieces
  • Supplier Device Package: 41-LGA (5x6)
  • Current Output: 70A
  • Voltage Supply Range: 3V to 3.6V
  • Operating Temperature Range: -40°C to 125°C
  • REACH: Unaffected
  • ECCN: EAR99
  • Manufacturer: Monolithic Power Systems Inc.
  • Product Status: Active
