Same model may have multiple batches, images only for reference.

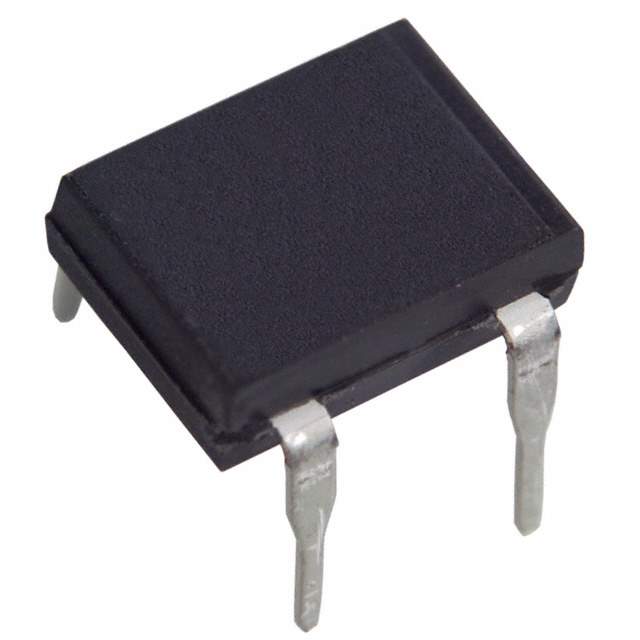

DF06M Real Image
Same model may have multiple batches, images only for reference.

DF06M

Part No DF06M
Manufacturer Fairchild/ON Semiconductor
Catalog Bridge Rectifiers
Description DIODE BRIDGE 600V 1.5A 4-DIP
Datasheet
DF06M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 1.5A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Current - Reverse Leakage @ Vr 5μA @ 600V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package 4-DIP
Win Source Part Number 014122-DF06M
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Power Management
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian DF06M CAD Model

Description

DF06M Bridge Rectifier

The DF06M offers significant improvements for high-power applications, providing superior rectification performance spread over a wider range of input voltages. It is ideal for modern electronics demanding reliability and efficiency.

  • Applications/Projects:
    • High-power converters
    • Electric vehicles
    • HVAC systems
  • Features and Benefits:
    • Enhanced forward voltage characteristics optimize power efficiency.
    • Designed to accommodate high surge currents, ensuring longevity.
    • Broad operational range suitable for various high-demand applications.
  • Additional Details:
    • Forward voltage up to 600V capability
    • Large case design for better thermal management
