Same model may have multiple batches, images only for reference.

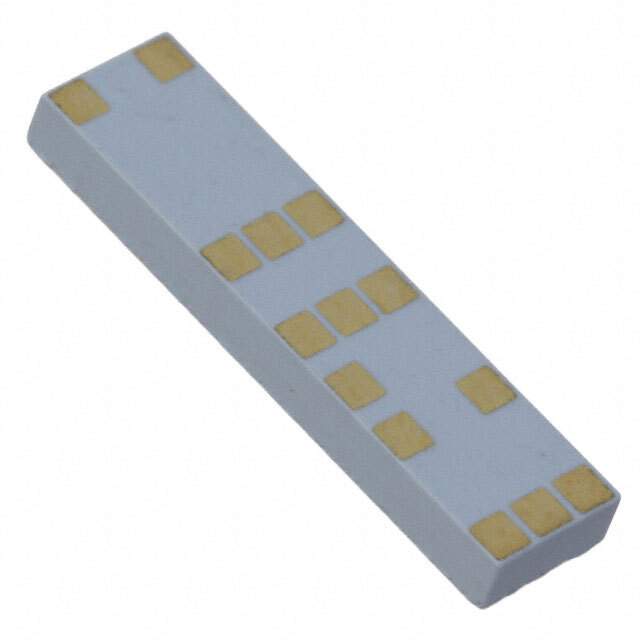

M232110 Real Image
Same model may have multiple batches, images only for reference.

M232110

Part No M232110
Manufacturer Ethertronics/AVX
Catalog RF Antennas
Description RF ANT 1.575GHZ/2.4GHZ CHIP SLD / 1.575GHz, 2.4GHz Bluetooth, GPS, Wi-Fi, WLAN, Zigbee™ Chip RF Antenna 1.575GHz, 2.4GHz ~ 2.5GHz 1.98dBi, 1.88dBi Solder Surface Mount
Datasheet
M232110 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Ethertronics/AVX
Series Savvi™
Package Tape & Reel
Product Status Obsolete
RF Family/Standard 802.15.4, Bluetooth, Navigation, WiFi
Frequency Group UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 1.575GHz, 2.4GHz
Frequency Range 1.575GHz, 2.4GHz ~ 2.5GHz
Antenna Type Chip
Number of Bands 2
VSWR 2, 2.6
Gain 1.98dBi, 1.88dBi
Power - Max 500 mW
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.051" (1.30mm)
Applications Bluetooth, GPS, Wi-Fi, WLAN, Zigbee™
MSL Level 1 (Unlimited)
ECCN 7A994
HTSUS 8529.10.9100
Other Names 939-1002-1,939-1002-2,939-1002-6
Standard Package 10,000
Win Source Part Number 1167069-M232110
Ultra Librarian 3D Model Ultra Librarian M232110 CAD Model

Description

The 1167069-M232110 RF Antenna is a high-quality chip antenna used for Bluetooth, GPS, Wi-Fi, WLAN, and Zigbee™ applications. This Ethertronics/AVX 1167069-M232110 antenna operates in a frequency range of 1.575GHz, 2.4GHz ~ 2.5GHz, with a maximum power of 500 mW.

  • Frequency Range: 1.575GHz, 2.4GHz ~ 2.5GHz
  • Maximum Power: 500 mW
  • Gain: 1.98dBi, 1.88dBi
  • VSWR: 2, 2.6
  • Termination: Solder
  • Antenna Type: Chip Antenna
  • Number of Bands: 2
  • Height: 0.051" (1.30mm)
  • Standard Package: 10,000
  • ECCN: 7A994
