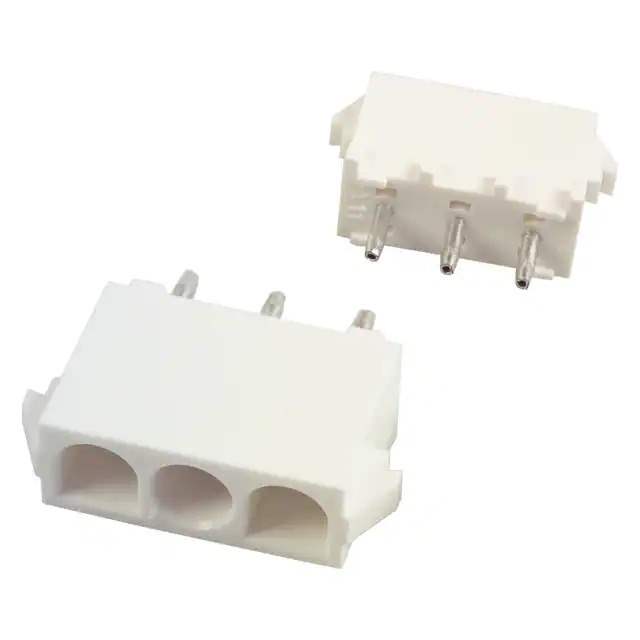

350790-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series Universal MATE-N-LOK
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.250" (6.35mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.215" (5.46mm)
Insulation Height 0.550" (13.97mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon
Material Flammability Rating UL94 V-0
Insulation Color White
Applications General Purpose
Base Product Number 350790
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 906648-350790-2
Ultra Librarian 3D Model Ultra Librarian 350790-2 CAD Model

Description

The Universal MATE-N-LOK Header is a high-quality male pin connector used in rectangular connectors. It is part of the Universal MATE-N-LOK series, known for its versatility and reliability.

  • Positions: 3
  • Pitch: 0.250"
  • Application: General Purpose
  • Features: Locking Ramp
  • Contact Finish: Gold
  • Contact Material: Phosphor Bronze
  • Manufacturer: TE Connectivity
