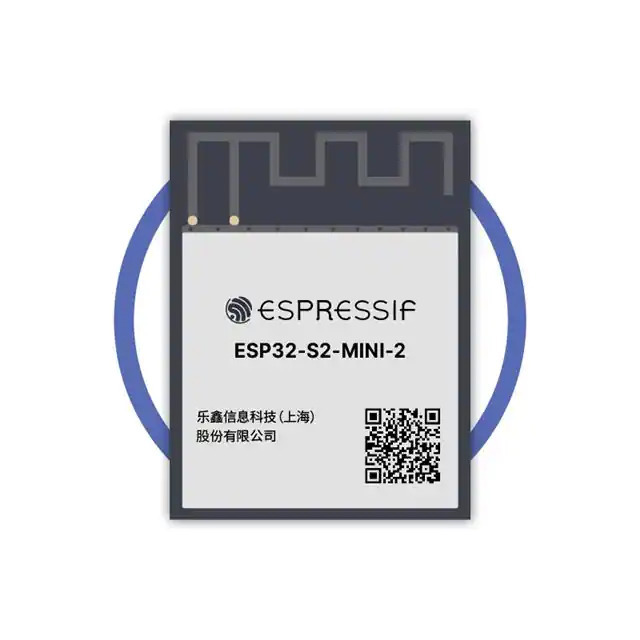

Same model may have multiple batches, images only for reference.
ESP32-S2-MINI-2-N4R2 Espressif
Same model may have multiple batches, images only for reference.

ESP32-S2-MINI-2-N4R2

Part No ESP32-S2-MINI-2-N4R2
Manufacturer Espressif
Catalog RF Transceiver Modules
Description SMD MOD ESP32-S2FN4R2 PCB ANT / WiFi 802.11b/g/n Transceiver Module 2.4GHz PCB Trace Surface Mount
Datasheet
ESP32-S2-MINI-2-N4R2 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Espressif Systems
Series ESP32
Package Bulk
Product Status Active
RF Family/Standard WiFi
Protocol 802.11b/g/n
Modulation -
Frequency 2.4GHz
Data Rate 150Mbps
Power - Output 19.5dBm
Sensitivity -97dBm
Serial Interfaces ADC, GPIO, I²C, I²S, SPI, PWM, UART, USB
Antenna Type PCB Trace
Utilized IC / Part ESP32-S2FN4R2
Memory Size 4MB Flash, 2MB PSRAM, 128kB ROM, 336kB SRAM
Voltage - Supply 3V ~ 3.6V
Current - Receiving 63mA ~ 68mA
Current - Transmitting 160mA ~ 310mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C (TA)
Package / Case 56-VFQFN Exposed Pad
Base Product Number ESP32-S2
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1370938-ESP32-S2-MINI-2-N4R2
Ultra Librarian 3D Model Ultra Librarian ESP32-S2-MINI-2-N4R2 CAD Model

Description

The ESP32-S2-MINI-2-N4R2 is an RF transceiver module and modem from Espressif Systems. It operates in a temperature range of -40°C to 85°C, making it suitable for a wide range of applications.

  • Manufacturer: Espressif Systems
  • Product Name: ESP32-S2-MINI-2-N4R2
  • Device Type: RF Transceiver Module and Modem
  • Operating Temperature: -40°C to 85°C
  • Frequency: 2.4GHz
  • Wireless Protocol: WiFi
  • Mounting Type: Surface Mount
  • Package: 56-VFQFN Exposed Pad
  • Memory: 4MB Flash, 2MB PSRAM, 128kB ROM, 336kB SRAM
  • Data Rate: 150Mbps
