Same model may have multiple batches, images only for reference.

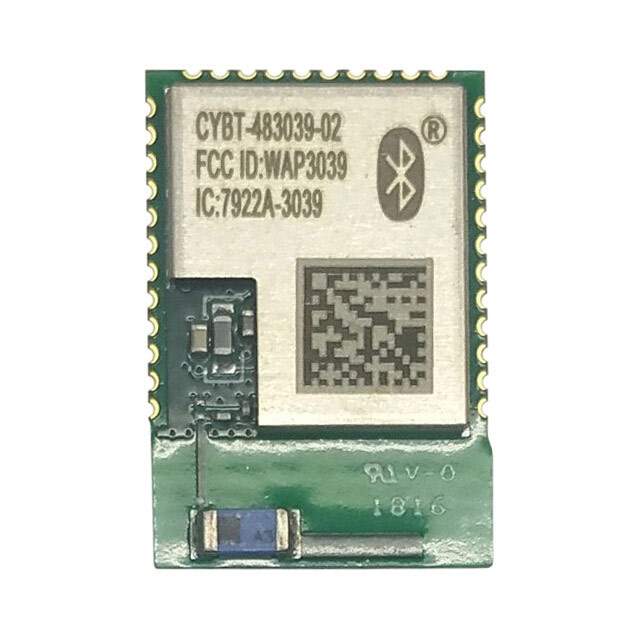

CYBT-483039-02 Real Image
Same model may have multiple batches, images only for reference.

CYBT-483039-02

Part No CYBT-483039-02
Manufacturer Infineon Technologies
Catalog RF Transceiver Modules
Description RF TXRX MOD BLE 5 CHIP SMD / Bluetooth Bluetooth v5.0 +EDR Transceiver Module 2.402GHz ~ 2.48GHz Integrated, Chip Surface Mount
Datasheet
CYBT-483039-02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Infineon Technologies
Series EZ-BT™ XR WICED®
Package Tape & Reel
Product Status Obsolete
RF Family/Standard Bluetooth
Protocol Bluetooth v5.0 +EDR
Modulation 8DPSK, DQPSK, GFSK
Frequency 2.402GHz ~ 2.48GHz
Data Rate 3Mbps
Power - Output 20dBm
Sensitivity -95dBm
Serial Interfaces ADC, I²C, I²S, PCM, PWM, SPI, UART
Antenna Type Integrated, Chip
Utilized IC / Part CYW20719
Memory Size 1MB Flash, 512kB SRAM
Voltage - Supply 1.76V ~ 3.63V
Current - Receiving 5.9mA
Current - Transmitting 5.6mA
Mounting Type Surface Mount
Temperature Range - Operating -30°C ~ 85°C
Package / Case 34-SMD Module
Standard Package 500
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A002A1
HTSUS 8517.62.0090
Win Source Part Number 1347825-CYBT-483039-02
Ultra Librarian 3D Model Ultra Librarian CYBT-483039-02 CAD Model

Description

The CYBT-483039-02 is a Bluetooth transceiver module from Infineon Technologies. This module is part of the EZ-BT™ XR WICED™ series.

  • Frequency Range: 2.402GHz to 2.48GHz
  • Protocol: Bluetooth v5.0 +EDR
  • Data Rate: 3Mbps
  • Memory: 1MB Flash and 512kB SRAM
  • Antenna: Integrated chip antenna
  • Output Power: 20dBm
  • Sensitivity: -95dBm
  • Current Receiving: 5.9mA
  • Serial Interfaces: ADC, I²C, I²S, PCM, PWM, SPI, and UART
  • Operating Temperature: -30°C to 85°C
