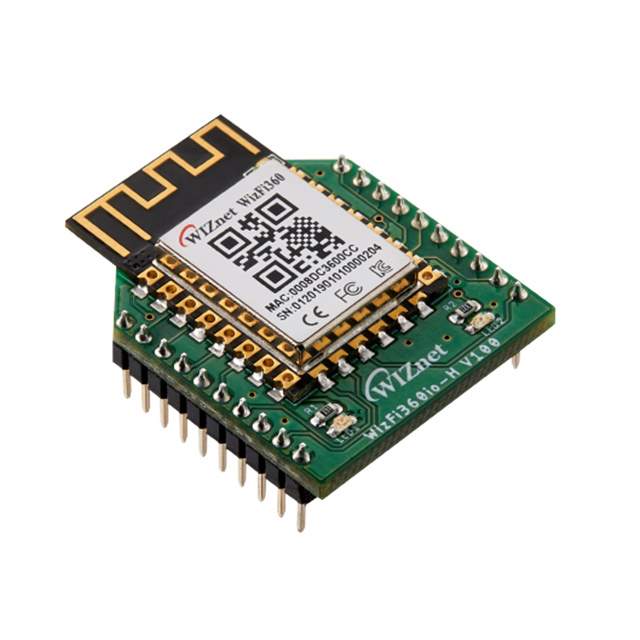

WIZFI360IO-H

Name: WIZFI360IO-H
Brand: WIZnet
SKU: 1349987
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	WIZFI360IO-H
Manufacturer	WIZnet
Catalog	RF Transceiver Modules
Description	RF TXRX MODULE WIFI TRACE ANT TH / WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Trace Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	RF and Wireless - RF Transceiver Modules and Modems
Mfr	WIZnet
Package	Box
RF Family/Standard	WiFi
Protocol	802.11b/g/n
Frequency	2.4GHz
Data Rate	2Mbps
Serial Interfaces	UART
Antenna Type	Integrated, Trace
Voltage - Supply	3V ~ 3.6V
Current - Receiving	110mA
Current - Transmitting	230mA
Mounting Type	Through Hole
Temperature Range - Operating	-40°C ~ 85°C
Package / Case	20-DIP Module
Base Product Number	WIZFI360
Standard Package	36
MSL Level	Not Applicable
ECCN	5A002A1
HTSUS	8517.62.0090
Win Source Part Number	1349987-WIZFI360IO-H
Ultra Librarian 3D Model	Ultra Librarian WIZFI360IO-H CAD Model

Description

The WIZnet WIZFI360IO-H is a 2.4GHz WiFi RF transceiver module that operates using the 802.11b/g/n protocol.

Data Rate: 2Mbps
Voltage - Supply: 3V ~ 3.6V
Current - Receiving: 110mA
Current - Transmitting: 230mA
Mounting Type: Through Hole
Package / Case: 20-DIP Module
Temperature Range: -40°C ~ 85°C
ECCN: 5A002A1
