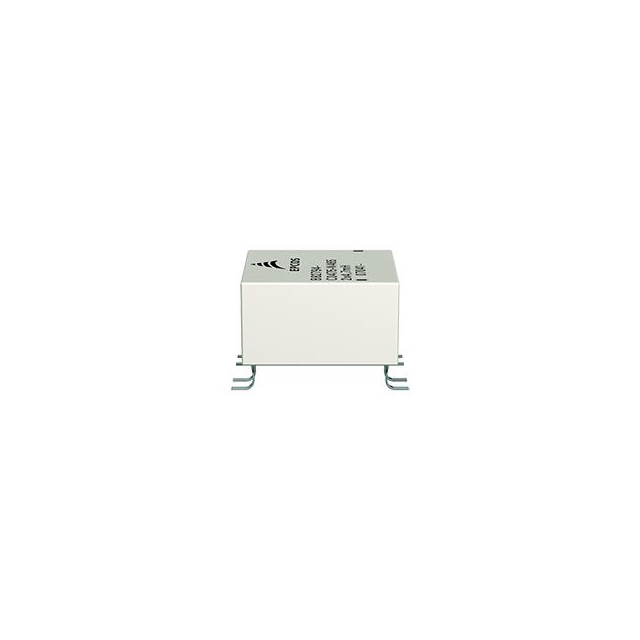

B82794C0286N465 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B82794C0286N465

Part No B82794C0286N465
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description 28 mH @ 10 kHz 2 Line Common Mode Choke Surface Mount 400mA DCR 1.2Ohm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series B82794
Packaging Reel - TR
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 28 mH @ 10 kHz
Current Rating (Max) 400mA
DC Resistance (DCR) (Max) 1.2Ohm (Typ)
Voltage Rating - DC 80V
Voltage Rating - AC 42V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.571" L x 0.524" W (14.50mm x 13.30mm)
Height (Max) 0.425" (10.80mm)
Package / Case Horizontal, 8 Gull Wing
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1482377-B82794C0286N465
Ultra Librarian 3D Model Ultra Librarian B82794C0286N465 CAD Model
