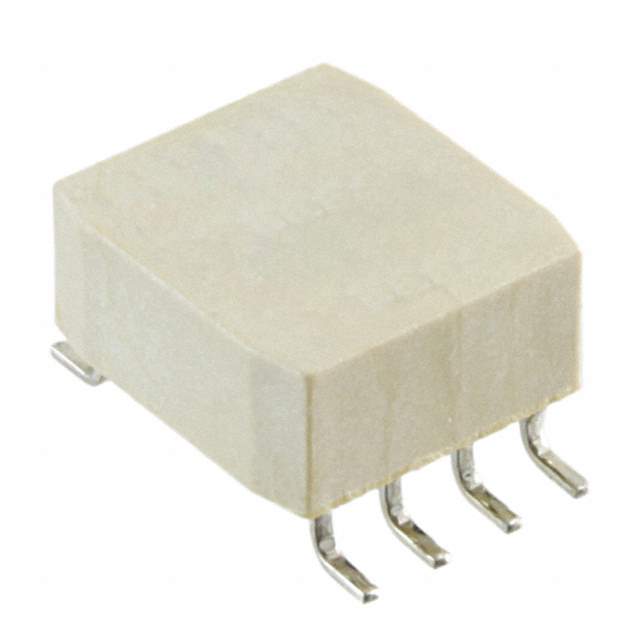

Same model may have multiple batches, images only for reference.

B82792C2105N365

Name: B82792C2105N365
Brand: EPCOS (TDK)
SKU: 1161641
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B82792C2105N365
Manufacturer	EPCOS (TDK)
Catalog	Common Mode Chokes
Description	CMC 1MH 500MA 4LN SMD / 1 mH @ 100 kHz 4 Line Common Mode Choke Surface Mount 500mA DCR 170mOhm (Typ)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>Common Mode Chokes
Mfr	EPCOS - TDK Electronics
Series	B82792
Package	Tape & Reel
Filter Type	Signal Line
Number of Lines	4
Inductance @ Frequency	1 mH @ 100 kHz
Current Rating (Max)	500mA
DC Resistance (DCR) (Max)	170mOhm (Typ)
Voltage Rating - DC	80V
Voltage Rating - AC	42V
Temperature Range - Operating	-40°C ~ 125°C
Mounting	SMD (SMT)
Dimension	0.453" L x 0.413" W (11.50mm x 10.50mm)
Height (Max)	0.287" (7.30mm)
Package / Case	Horizontal, 8 Gull Wing
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Other Names	495-5769-6,B82792C2105N365-ND,495-5769-2,495-5769-1
Standard Package	500
Win Source Part Number	1161641-B82792C2105N365
Ultra Librarian 3D Model	Ultra Librarian B82792C2105N365 CAD Model

Alternative Products

Description

The B82792C2105N365 is a common mode choke that comes with a package of tape and reel manufactured by EPCOS (TDK).

Voltage Rating: 42V (AC), 80V (DC)
Current Rating: 500mA (Max)
Height: 0.287 inches (7.30 mm)
Number of Lines: 4
Inductance: 1 mH @ 100 kHz
DC Resistance: 170mOhm (typ) / 170mOhm (max)
Application: Signal Line Filter
Mounting Type: SMD (SMT)
Package/Case: Horizontal, 8 Gull Wing
Temperature Range: -40°C to 125°C
REACH: Unaffected
Applications: Automotive, Industrial, and Telecom
