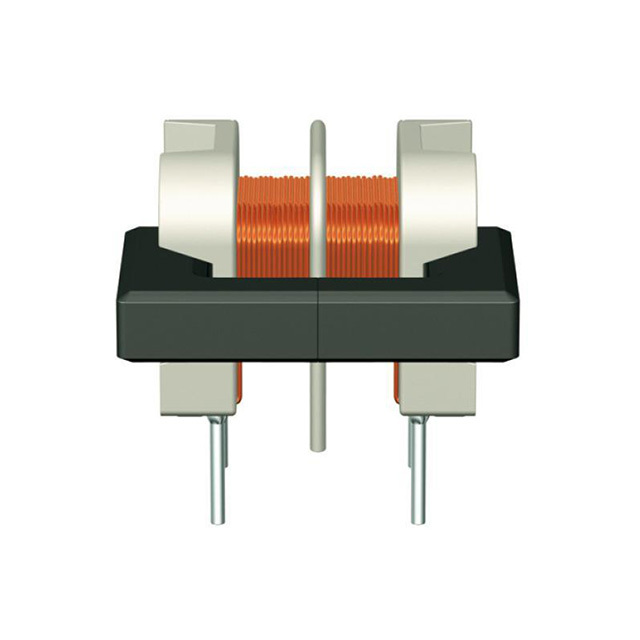

B82730G3262A020 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B82730G3262A020

Part No B82730G3262A020
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description 330 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 2.6A DCR 60mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series B82730
Packaging Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 330 µH @ 100 kHz
Current Rating (Max) 2.6A
DC Resistance (DCR) (Max) 60mOhm (Typ)
Voltage Rating - AC 300V
Temperature Range - Operating -40°C ~ 125°C
Approval Agency UR, VDE
Mounting Type Through Hole
Size / Dimension 0.650" L x 0.591" W (16.50mm x 15.00mm)
Height (Max) 0.472" (12.00mm)
Package / Case Horizontal, 4 PC Pin
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1482275-B82730G3262A020
Ultra Librarian 3D Model Ultra Librarian B82730G3262A020 CAD Model
