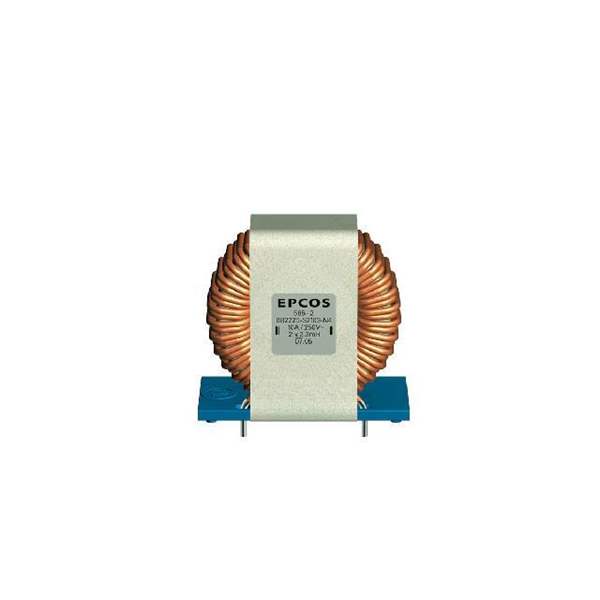

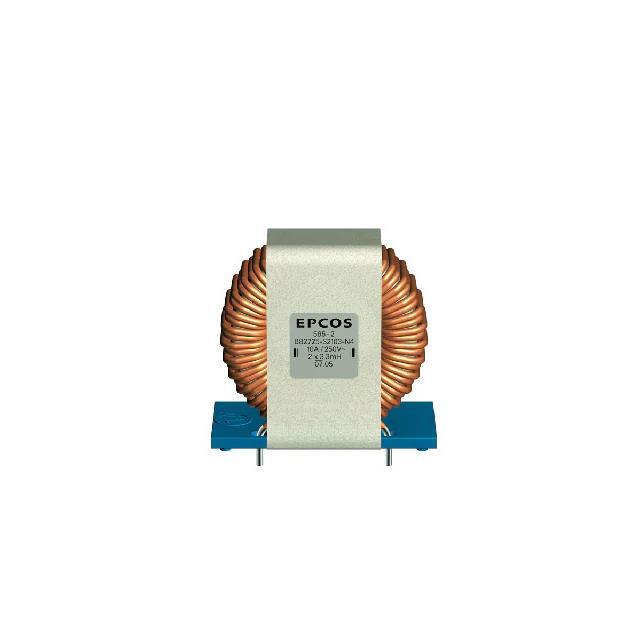

B82725S2133N040 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B82725S2133N040

Part No B82725S2133N040
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description 1.4 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 13A DCR 5.3mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series B82725
Packaging Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.4 mH @ 10 kHz
Current Rating (Max) 13A
DC Resistance (DCR) (Max) 5.3mOhm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Approval Agency UL
Mounting Type Through Hole
Size / Dimension 1.590" L x 0.807" W (40.40mm x 20.50mm)
Height (Max) 1.457" (37.00mm)
Package / Case Vertical, 4 PC Pin
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1482244-B82725S2133N040
Ultra Librarian 3D Model Ultra Librarian B82725S2133N040 CAD Model
