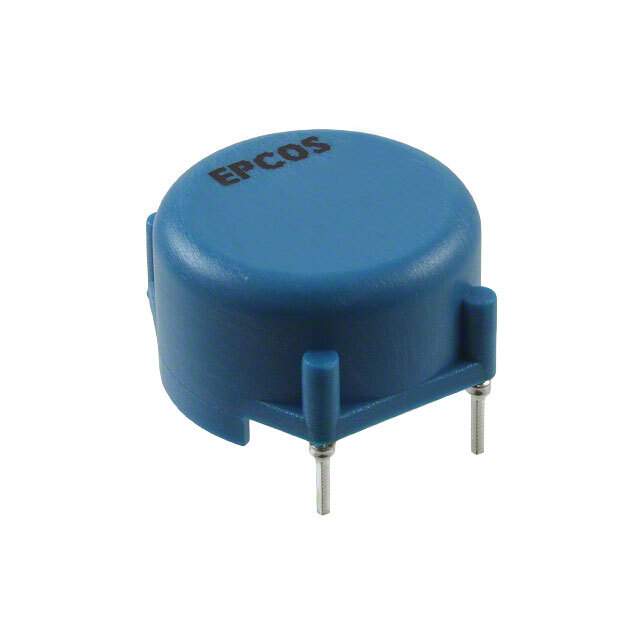

B82722A2202N001 Real Image
Same model may have multiple batches, images only for reference.

B82722A2202N001

Part No B82722A2202N001
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 2.2MH 2A 2LN TH / 2.2 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 2A DCR 130mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr EPCOS - TDK Electronics
Series B82722
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2.2 mH @ 10 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 130mOhm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Approval Agency ENEC, UR, VDE
Mounting Type Through Hole
Dimension 0.894" L x 0.878" W (22.70mm x 22.30mm)
Height (Max) 0.524" (13.30mm)
Package / Case Horizontal, 4 PC Pin
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Other Names B82722A2202N 1,B82722A2202N 1,B82722A2202N1,495-2741
Standard Package 600
Win Source Part Number 1214417-B82722A2202N001
Ultra Librarian 3D Model Ultra Librarian B82722A2202N001 CAD Model

Description

This B82722 series common mode choke is an ideal choice for power line filtering applications.

  • Inductance: 2.2 mH @ 10 kHz
  • Current Rating: 2A
  • Voltage Rating: 250V AC
  • DC Resistance (DCR): 130mOhm (Typ)
  • Package: Horizontal, 4 PC Pin
  • Height: 0.524" (13.30mm)
  • Lines: 2
  • Operating Temperature: -40°C ~ 125°C
  • Packaging: Tray
  • Standard Package: 600
