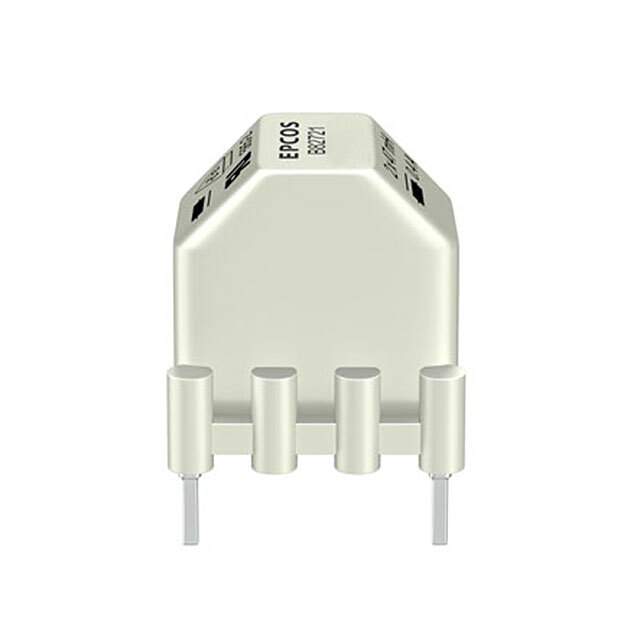

B82721K2402N020 Real Image
Same model may have multiple batches, images only for reference.

B82721K2402N020

Part No B82721K2402N020
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 700UH 4A 2LN TH / 700 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 4A DCR 30mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr EPCOS - TDK Electronics
Series B82721
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 700 µH @ 100 kHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 30mOhm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Approval Agency ENEC, UR, VDE
Mounting Type Through Hole
Dimension 0.717" L x 0.520" W (18.20mm x 13.20mm)
Height (Max) 0.823" (20.90mm)
Package / Case Vertical, 4 PC Pin
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 495-75228,B82721K2402N20-ND,B82721K2402N20,B82721K2402N 20
Standard Package 720
Win Source Part Number 1176772-B82721K2402N020
Ultra Librarian 3D Model Ultra Librarian B82721K2402N020 CAD Model

Description

The B82721K2402N020 is a common mode choke filter designed by EPCOS - TDK Electronics.

  • Voltage Rating: 250V
  • Current Rating: 4A
  • Height: 0.823" (20.90mm)
  • Mounting Type: Through Hole
  • Filter Type: Power Line
  • Lines: 2
  • Inductance: 700 µH @ 100 kHz
  • DC Resistance (DCR): 30mOhm (Typ)
  • Market Status: Open Market
  • Supply and Demand: Balanced
