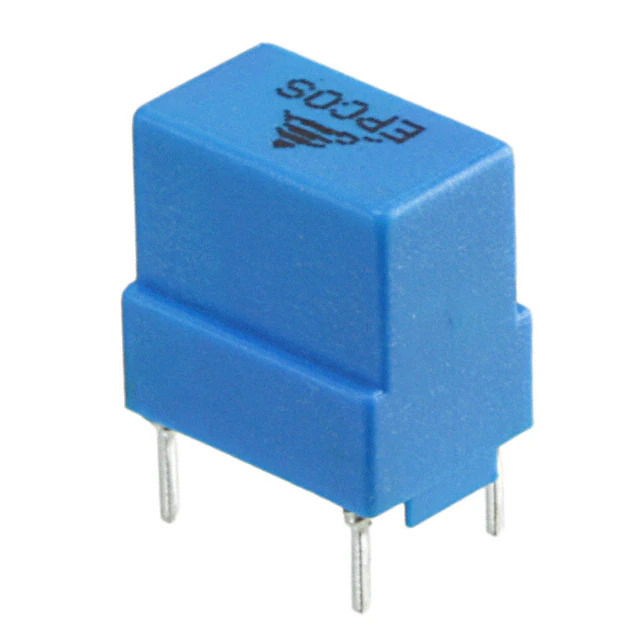

B82720K2601N040 EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B82720K2601N040

Part No B82720K2601N040
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 4.4MH 600MA 2LN TH / 4.4 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 600mA DCR 400mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr EPCOS - TDK Electronics
Series B82720
Package Tray
Product Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 4.4 mH @ 10 kHz
Current Rating (Max) 600mA
DC Resistance (DCR) (Max) 400mOhm (Typ)
Voltage Rating - DC -
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Ratings -
Approval Agency ENEC, UR, VDE
Features -
Mounting Type Through Hole
Size / Dimension 0.512" L x 0.374" W (13.00mm x 9.50mm)
Height (Max) 0.551" (14.00mm)
Package / Case Vertical, 4 PC Pin
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1354883-B82720K2601N040
Ultra Librarian 3D Model Ultra Librarian B82720K2601N040 CAD Model

Description

The 1354883-B82720K2601N040 is a common mode choke manufactured by EPCOS - TDK Electronics.

  • Series: B82720
  • Mounting Type: Through-Hole
  • Voltage Rating: 250V
  • Current Rating: 600mA
  • Size: 0.512" L x 0.374" W
  • Height: 0.551"
  • Application: Power Line Filtering
  • Number of Lines: 2
  • DC Resistance: 400mOhm
  • Inductance: 4.4mH @ 10kHz
  • Approvals: ENEC, UR, and VDE
