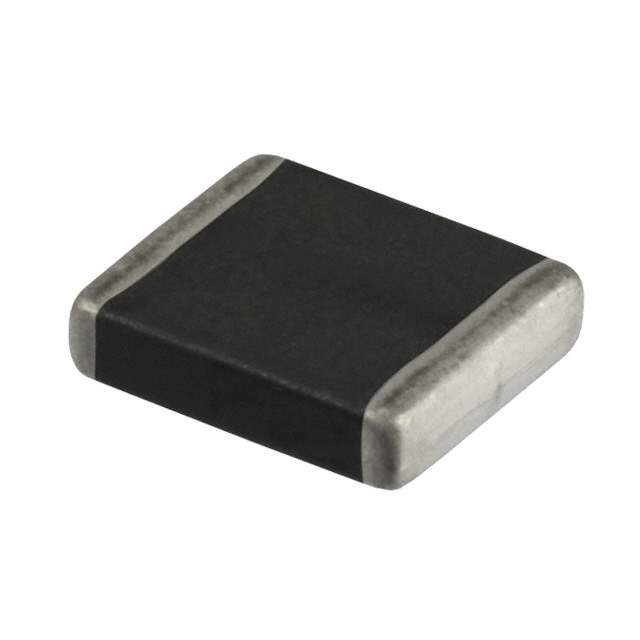

The B72530E300K62 is a varistor manufactured by EPCOS (TDK) designed for transient voltage surge suppression. It is used to protect sensitive electronic components from damage caused by voltage spikes arising from lightning strikes, inductive load switching, and electrostatic discharge. This varistor is part of the EPCOS series known for their reliability and robust performance in various overvoltage protection applications.

Applications

• Power supplies
• Industrial automation equipment
• Consumer electronics
• Telecommunication systems
• Surge protection devices (SPDs)

Features

• High surge current handling capability
• Fast response time to transient events
• Stable clamping voltage
• RoHS compliant
• Compact design for easy integration

Benefits

• Protects electronic circuits from damage due to voltage surges
• Increases the lifespan and reliability of electronic devices
• Reduces downtime and maintenance costs
• Meets industry safety standards
• Provides cost-effective overvoltage protection

Additional Details

The B72530E300K62 has a varistor voltage of 30V. A varistor (variable resistor) operates by exhibiting a high resistance at normal operating voltages, effectively acting as an open circuit. When a transient voltage spike exceeds a certain threshold, the varistor's resistance rapidly decreases, diverting the excess current away from sensitive components. This 'clamping' action limits the voltage across the protected circuit, preventing damage.

The 'E' in the part number typically indicates a specific series or performance characteristic within the EPCOS varistor family. The surge current rating is a critical parameter, defining the maximum current the varistor can safely handle during a surge event. The energy absorption capability, measured in joules, indicates the amount of energy the varistor can dissipate without failure.

Choosing the correct varistor involves considering the operating voltage of the circuit, the expected surge current levels, and the desired clamping voltage. The B72530E300K62's compact size allows for easy integration into various electronic devices where space is a constraint. The fast response time ensures effective suppression of even fast-rising transient events. Its RoHS compliance signifies adherence to environmental regulations, restricting the use of hazardous substances.

In summary, the B72530E300K62 is a reliable and cost-effective solution for protecting electronic equipment from overvoltage transients, enhancing the reliability and longevity of devices across a wide range of applications.
