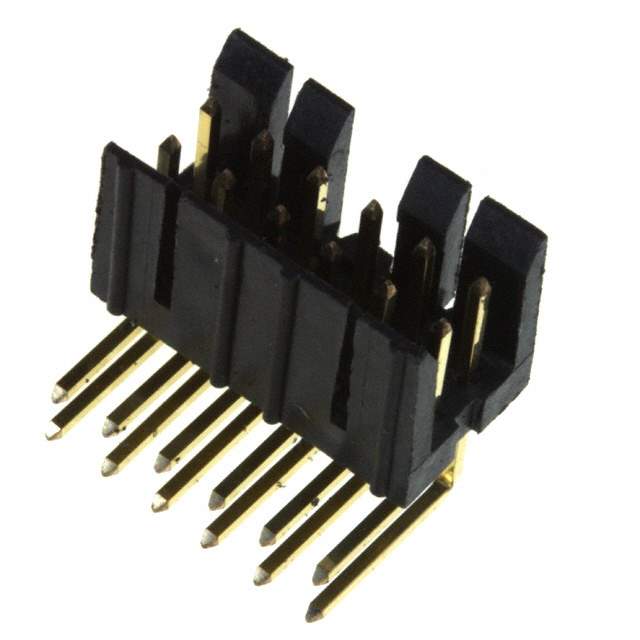

78207-112HLF Real Image
Same model may have multiple batches, images only for reference.

78207-112HLF

Part No 78207-112HLF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER R/A 12POS 2.54MM / Connector Header Through Hole, Right Angle 12 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series Mini-PV™, Basics+
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 2 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.120" (3.05mm)
Insulation Height 0.303" (7.70mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Material Phosphor Bronze
Features Keying Slot
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number 78207
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-78207-112HLF,609-2439,78207112HLF
Standard Package 200
Win Source Part Number 1032012-78207-112HLF
Ultra Librarian 3D Model Ultra Librarian 78207-112HLF CAD Model

Description

The Amphenol ICC (FCI) Mini-PV™, Basics+ is a 12-position header connector that comes with a keying slot.

  • Contact Position: 12
  • Keying Slot: Yes
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Mounting Type: Through Hole, Right Angle
  • Fastening Type: Friction Lock
  • Walls: Shrouded, 2 Walls
  • Contact Shape: Square
  • Pitch-Mating: 0.100" (2.54mm)
  • Insulation Color: Black
  • Contact Finish-Mating: Gold or Gold, GXT™
  • Contact Finish-Mating Thickness: 30.0µin (0.76µm)
  • Contact Length-Mating: 0.230" (5.84mm)
  • Contact Length-Post: 0.120" (3.05mm)
  • Insulation Height: 0.303" (7.70mm)
  • Connector Style: Board to Cable/Wire
  • Contact Material: Phosphor Bronze
  • Material Flammability Rating: UL94 V-0
  • Standard Package: 200
