Same model may have multiple batches, images only for reference.

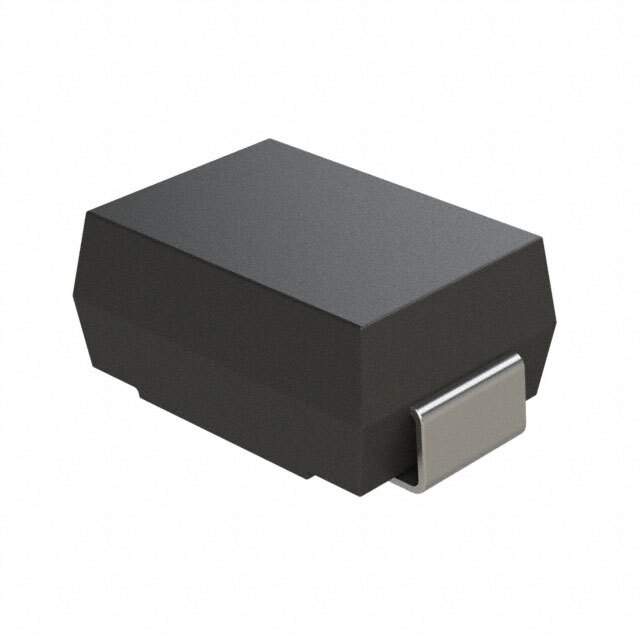

SMCP0640SC Real Image
Same model may have multiple batches, images only for reference.

SMCP0640SC

Part No SMCP0640SC
Manufacturer Eaton Bussmann
Catalog TVS - Thyristors
Description THYRISTOR 58V 400A DO214AA / 58V Off-State 400 A Ipp TVS Thyristor DO-214AA, SMB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Thyristors
Mfr Eaton - Electronics Division
Series SMCP
Package Tape & Reel
Voltage - Breakover 77V
Voltage - Off State 58V
Voltage - On State 4 V
Current - Peak Pulse (8/20µs) 400 A
Current - Peak Pulse (10/1000µs) 100 A
Current - Hold (Ih) 120 mA
Number of Elements 1
Capacitance 60pF
Mounting SMD (SMT)
Package / Case DO-214AA, SMB
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Other Names 283-SMCP0640SCDKR,283-SMCP0640SCTR,283-SMCP0640SCCT
Standard Package 3,000
Win Source Part Number 1052944-SMCP0640SC
Ultra Librarian 3D Model Ultra Librarian SMCP0640SC CAD Model

Description

The Eaton SMCP0640SC is a circuit protection electronic component.

  • Capacitance: 60pF
  • Current Rating: 100 A peak pulse (10/1000µs) and 400 A peak pulse (8/20µs)
  • Voltage-Off State: 58V
  • Voltage-Breakover: 77V
  • Voltage-On State: 4V
  • Pin Header: Male with six positions per level and a right-angle orientation
  • Package: Standard package of 3,000
  • Mounting: Surface-mount device (SMD)
  • Win Source Part Number: 1052944-SMCP0640SC
