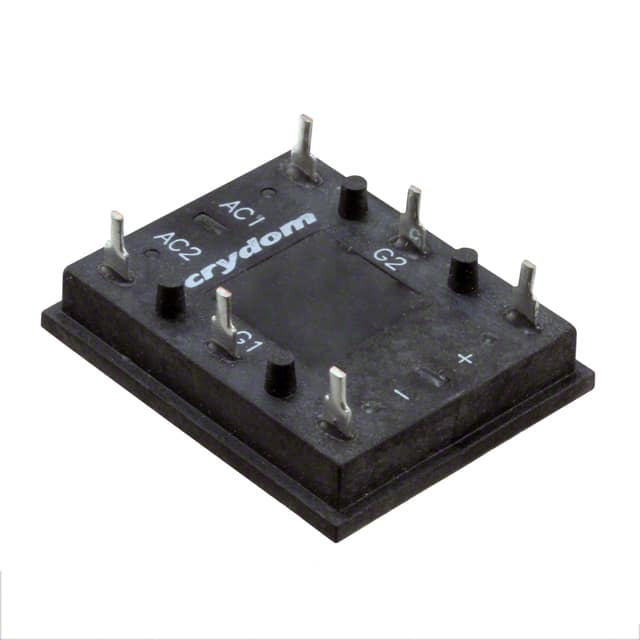

Same model may have multiple batches, images only for reference.
L431

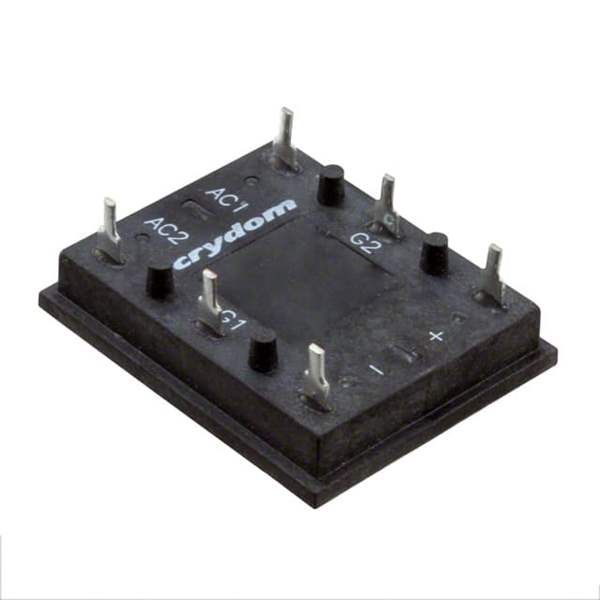

Same model may have multiple batches, images only for reference.

L431

Part No L431
Manufacturer Sensata-Crydom
Catalog TVS - Thyristors
Description MODULE BRIDGE RECT SLG PHASE 30A / SCR Module 600 V 22 A Bridge, Single Phase - SCRs/Diodes (Layout 3) Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs - Modules
Mfr Sensata-Crydom
Series L
Package Bulk
Product Status Not For New Designs
Structure Bridge, Single Phase - SCRs/Diodes (Layout 3)
Number of SCRs, Diodes 2 SCRs, 2 Diodes
Voltage - Off State 600 V
Current - On State (It (AV)) (Max) 100 A
Current - On State (It (RMS)) (Max) 22 A
Voltage - Gate Trigger (Vgt) (Max) 2.5 V
Current - Gate Trigger (Igt) (Max) 100 mA
Current - Hold (Ih) (Max) 100 mA
Temperature Range - Operating -40°C ~ 125°C (TJ)
Package / Case Module
Standard Package 10 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
California Prop 65 Warning Information
Win Source Part Number 876543-L431
Ultra Librarian 3D Model Ultra Librarian L431 CAD Model

Description

The L series SCR module is a high-quality component designed for reliable power control applications.

  • Package Type: bulk
  • Standard Package: 10 pcs
  • Current Hold Rating: 100mA
  • Off-State Voltage Rating: 600V
  • Gate Trigger Voltage: 2.5V maximum
  • Current Gate Trigger Rating: 100mA
  • Current On-State Rating: 100A (average) and 22A (RMS)
  • Structure: bridge, single phase, with 2 SCRs and 2 diodes
  • Temperature Range: -40°C to 125°C
  • Manufacturer: Sensata-Crydom
