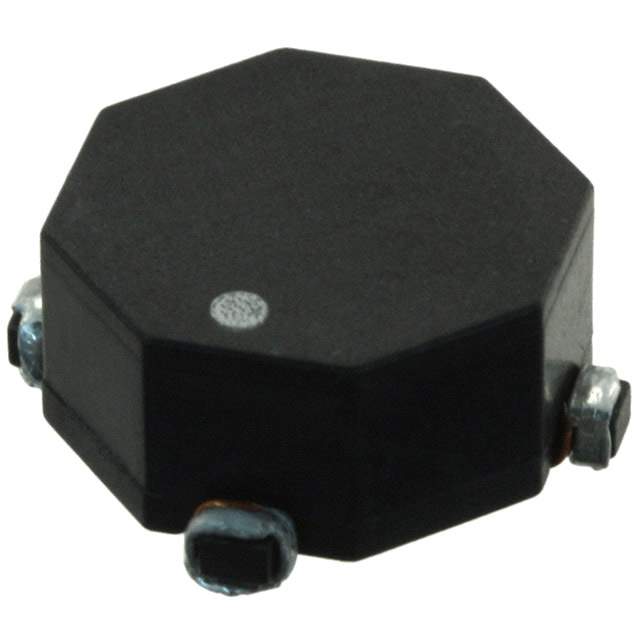

CMS3-5-R Real Image
Same model may have multiple batches, images only for reference.

CMS3-5-R

Part No CMS3-5-R
Manufacturer Eaton Bussmann
Catalog Common Mode Chokes
Description CMC 146UH 3.1A 2LN SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 18 Weeks
Features 2 Line Common Mode Choke Surface Mount 3.1A DCR 17mOhm (Typ)
Manufacturer Eaton Bussmann
Series CMS
Package Reel - TR
Operating Temperature Range -40°C ~ 160°C
Mounting Surface Mount
Package Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 283-5196-6, CMS3-5-ND, CMS3-5, CMS3-5-R-ND, 283-5196-2, 283-5196-1
Quantity per package 600
Popularity High
Supply and Demand Status Balance
Win Source Part Number 915634-CMS3-5-R
Ultra Librarian 3D Model Ultra Librarian CMS3-5-R CAD Model

Description

The Eaton Bussmann 915634-CMS3-5-R filter is a high-quality component that is ideal for a range of electronic applications.

  • Type: 2 Line Common Mode Choke, Surface Mount
  • Current: 3.1A
  • DCR: 17mOhm (Typ)
  • Package: Horizontal, 4 PC pad
  • Mount: Surface Mount
  • Supply and Demand Status: Balanced
  • Estimated Production Lead Time: 18 weeks
  • HTSUS Code: 8548.90.0100
  • Other Part Numbers: 283-5196-6, CMS3-5-ND, CMS3-5, CMS3-5-R-ND, 283-5196-2, and 283-5196-1
