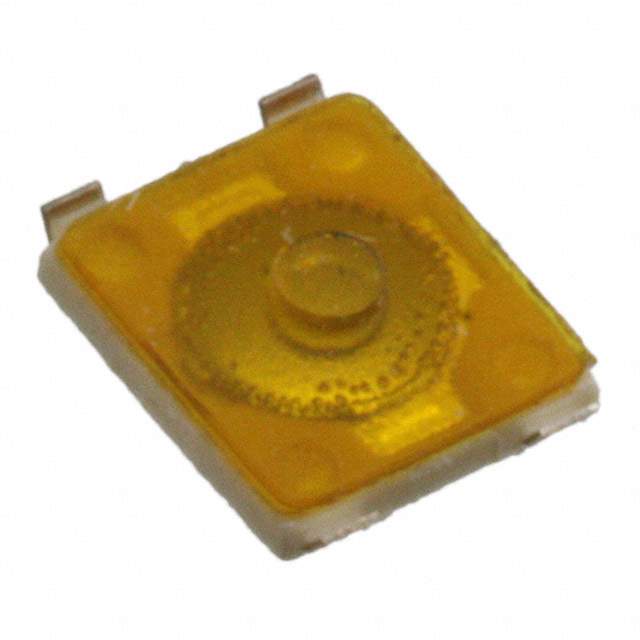

The TL3700AF100QG is a miniature tactile switch manufactured by E-Switch. It is designed for surface mount applications and offers a compact and reliable solution for various electronic devices. These switches are commonly used in applications requiring a momentary, tactile feedback.

Applications:

• Consumer electronics: Remote controls, mobile phones, gaming devices
• Industrial equipment: Control panels, testing and measurement instruments
• Medical devices: Diagnostic equipment, patient monitoring systems
• Automotive: Car audio systems, dashboard controls
• Computer peripherals: Keyboards, mice, trackpads

Features:

• Miniature size: Compact design for space-constrained applications
• Surface mount technology (SMT): Enables automated assembly and reflow soldering
• Tactile feedback: Provides a distinct click sensation upon activation
• High reliability: Designed for long life and consistent performance
• Low profile: Minimizes height above the PCB
• Gold plated contacts: Ensures optimal conductivity and corrosion resistance
• Operating force: 100gf

Benefits:

• Space saving: Miniature size allows for higher density designs
• Easy assembly: SMT compatibility simplifies manufacturing
• Improved user experience: Tactile feedback provides confirmation of switch activation
• Long lifespan: High reliability ensures extended product life
• Consistent performance: Gold plated contacts minimize contact resistance

Technical Specifications:

• Contact Rating: 50mA, 12VDC
• Contact Resistance: 100 mΩ max
• Insulation Resistance: 100 MΩ min at 500VDC
• Dielectric Strength: 500VAC for 1 minute
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -30°C to +80°C
• Operating Life: 100,000 cycles minimum

The TL3700AF100QG is a reliable and versatile tactile switch suitable for a wide range of applications where space is at a premium and tactile feedback is essential.
