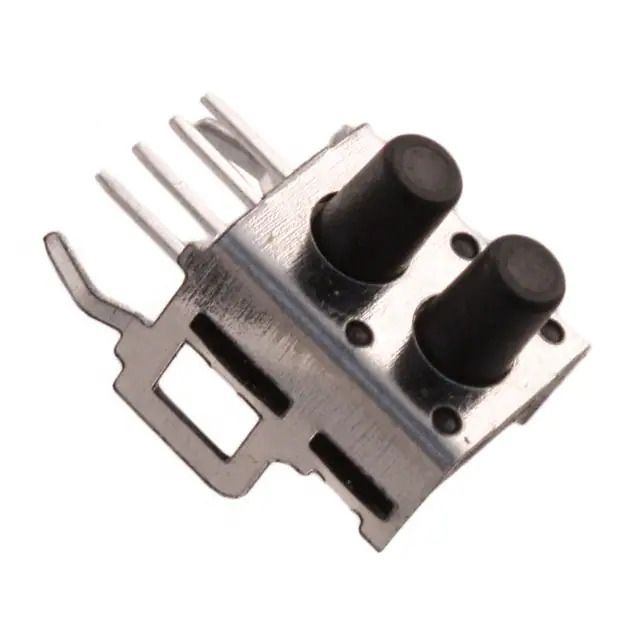

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr E-Switch
Series TL2243
Package Bulk
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Dual
Mounting Type Through Hole, Right Angle
Actuator Height off PCB, Vertical -
Actuator Length, Right Angle 6.80mm
Actuator Orientation Side Actuated
Termination Style PC Pin
Outline 7.30mm x 8.00mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 180gf
Ingress Protection -
Features Tactile Feedback
Temperature Range - Operating -20°C ~ 70°C
Actuator Material -
Switch Travel 0.25mm
Mechanical Life 30,000 Cycles
Base Product Number -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376581-TL2243
Ultra Librarian 3D Model Ultra Librarian TL2243 CAD Model

Description

The TL2243 is a tactile switch from E-Switch.

  • Mounting Type: Through Hole, Right Angle
  • Actuator Type: Dual
  • Tactile Feedback: Yes
  • Mechanical Life: 30,000 Cycles
  • Contact Rating: 0.05A @ 12VDC
  • Actuator Length: 6.80mm
  • Switch Travel: 0.25mm
  • Illumination: Non-Illuminated
  • Operating Force: 180gf
  • Temperature Range: -20°C to 70°C
  • Package: Bulk
