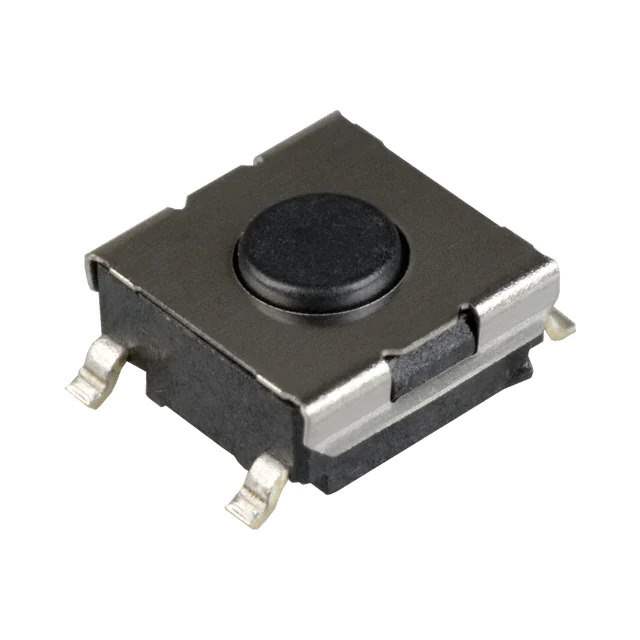

B3FS-1000P Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Omron
Series B3FS
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 3.10mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.30mm x 6.00mm
Illumination Non-Illuminated
Operating Force 100gf
Temperature Range - Operating -25°C ~ 70°C
Switch Travel 0.25mm
Mechanical Life 1,000,000 Cycles
Base Product Number B3FS
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 568070-B3FS-1000P
Ultra Librarian 3D Model Ultra Librarian B3FS-1000P CAD Model

Description

The B3FS-1000P is a tactile switch from Omron.

  • Circuit Configuration: It has a SPST-NO circuit configuration with an off-mom switch function.
  • Actuator Type: The actuator type is standard
  • Switch Travel: and the switch travel is 0.25mm.
  • Operating Force: It has an operating force of 100gf
  • Mechanical Life: and a mechanical life of 1,000,000 cycles.
  • Mounting: The switch is surface mountable
  • Temperature Range: and has a temperature range of -25°C to 70°C.
  • Size: The B3FS-1000P switch has a compact size with an outline of 6.30mm x 6.00mm.
  • Status: It is an active product from Omron.
