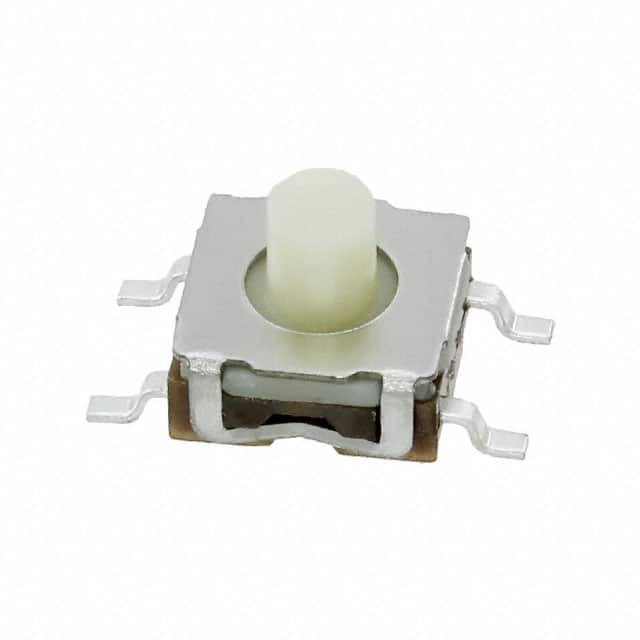

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr TE Connectivity
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 5.00mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.20mm x 6.20mm
Illumination Non-Illuminated
Operating Force 160gf
Temperature Range - Operating -35°C ~ 85°C
Actuator Material Silicon Rubber
Switch Travel 0.15mm
Mechanical Life 5,000,000 Cycles
Base Product Number 1571634
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 854046-1571634-2
Ultra Librarian 3D Model Ultra Librarian 1571634-2 CAD Model

Description

The tactile switch with part number 854046-1571634-2 is a reliable and high-quality component for various electronic devices.

  • Termination Style: Gull Wing
  • Switch Function: Off-Mom
  • Actuator Type: Standard
  • Switch Travel: 0.15mm
  • Contact Rating: 0.05A @ 24VDC
  • Mounting Type: Surface Mount
  • Temperature Range: -35°C to 85°C
  • Mechanical Life: 5,000,000 cycles
