The BTW67-600 is a robust thyristor manufactured by STMicroelectronics, designed to excel in applications requiring high bidirectional blocking voltage capability and high thermal cycling performance. This silicon-controlled rectifier (SCR) is a perfect fit for phase control applications in converters, and motor control circuits, as well as for surge and crowbar protection in power supplies and other power switching applications.

Key Features

• High Blocking Voltage: With a maximum repetitive peak reverse and off-state voltage of 600V, the BTW67-600 can handle high power and voltage applications with ease.
• High Surge Current: Its non-repetitive surge peak on-state current is specified at a robust 650A, ensuring the device can withstand high surge conditions without damage.
• High Junction Temperature: The device operates effectively over a wide temperature range with a maximum junction temperature of 125°C, making it suitable for challenging thermal environments.
• Gate Trigger Current: The gate trigger current (Igt) is specified at a value that ensures reliable triggering but is low enough to be driven by a wide range of control circuits.

Applications

This thyristor is ideal for a variety of applications, including:

• AC phase control circuits
• Motor control circuits
• Power supplies
• Overvoltage crowbar protection
• Soft start circuits

Package and Quality

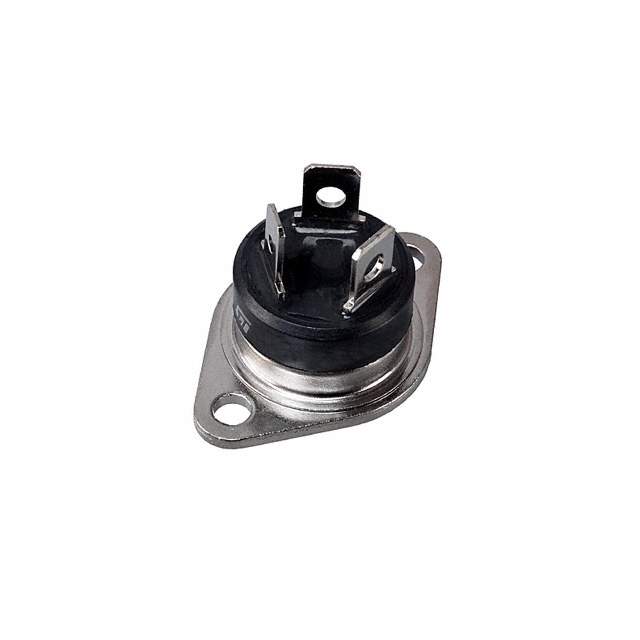

The BTW67-600 is packaged in a robust, isolated TO-3P package that provides excellent heat dissipation and electrical isolation. STMicroelectronics ensures that this device meets the highest quality and reliability standards, with rigorous testing and quality control measures in place.

Conclusion

STMicroelectronics' BTW67-600 SCR is a highly reliable, high-performance component that provides designers with a flexible solution for high voltage, high current applications. Its robustness and high surge capability make it an excellent choice for industrial power applications where reliability is paramount.
