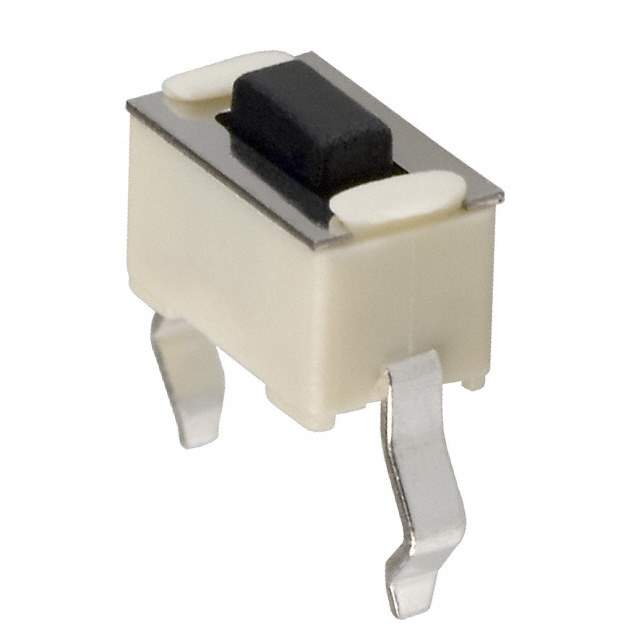

Same model may have multiple batches, images only for reference.

TL1107AF130WQ

Name: TL1107AF130WQ
Brand: E-Switch
SKU: 1196059
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	TL1107AF130WQ
Manufacturer	E-Switch
Catalog	Tactile Switches
Description	Switch Tactile N.O. SPST Rectangular Button PC Pins 0.05A 12VDC 40000Cycles 1.27N Thru-Hole Bulk
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Actuator Length	800 µm
Actuator Material	Nylon, Polyamide
Contact Current Rating	50 mA
Contact Material	Silver
Contact Plating	Silver
Contact Resistance	100 mΩ
Current Rating	50 mA
Electrical Life	40 kcycles
Illumination Type	Non-Illuminated
Lead Free	Lead Free
Length	6 mm
Max Operating Temperature	70 °C
Max Voltage Rating (DC)	12 V
Mechanical Life	40 kcycles
Min Operating Temperature	-20 °C
Mount	Through Hole
Orientation	Straight
Packaging	Bulk
RoHS	Compliant
Switch Function	Off-Mom
Switch Travel	250 µm
Termination	PC Pin
Throw Configuration	SPST
Voltage Rating (DC)	12 V
Width	3.5 mm
Win Source Part Number	1196059-TL1107AF130WQ
Categories	Tactile Switches
Manufacturer	E-Switch
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian TL1107AF130WQ CAD Model

Description

The TL1107AF130WQ is an electronic component manufactured by E-Switch.

Supply and Demand Status: Limited
Component Type: Tactile switch
Mounting Type: Through-hole
Configuration: Single-pole single-throw (SPST)
Contact Material: Silver
Contact Current Rating: 50mA
Electrical Life: 40k cycles
Contact Resistance: 100mΩ
Applications: Consumer electronics, industrial controls, and medical devices
