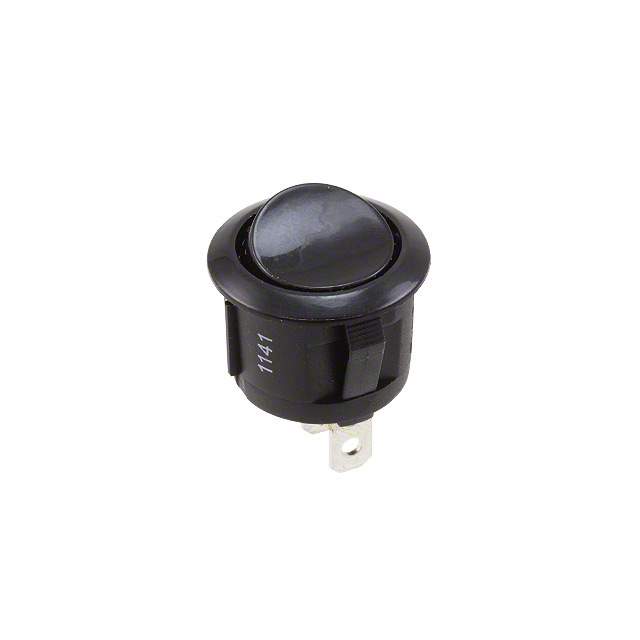

RRG38431100 Real Image
Same model may have multiple batches, images only for reference.

RRG38431100

Part No RRG38431100
Manufacturer E-Switch
Catalog Rocker Switches
Description SWITCH ROCKER SPST-NO 10A 125V / Rocker Switch SPST-NO 10A (AC) 125 V Panel Mount, Snap-In
Datasheet
RRG38431100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr E-Switch
Series RRG3, LAMB
Package Bulk
Mounting Type Panel Mount, Snap-In
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 10A (AC)
Voltage Rating - AC 125 V
Actuator Type Round
Color - Actuator/Cap Black
Actuator Marking No Marking
Termination Style Solder, Quick Connect - 0.187" (4.7mm)
Panel Cutout Dimensions Circular - 20.00mm Dia
Temperature Range - Operating -20°C ~ 105°C
Electrical Life 6,000 Cycles
Base Product Number RRG3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names -RRG38431100
Standard Package 50
Win Source Part Number 1198196-RRG38431100
Ultra Librarian 3D Model Ultra Librarian RRG38431100 CAD Model

Description

The RRG38431100 is a SPST-NO Off-Mom Round Rocker Switch from E-Switch. It has a solder and quick connect termination style with a voltage rating of 125V AC.

  • Type: SPST-NO Off-Mom Round Rocker Switch
  • Termination Style: Solder and quick connect
  • Voltage Rating: 125V AC
  • Panel Cutout Dimension: 20.00mm Dia
  • Electrical Life: 6,000 cycles
  • Actuator Type: Round
  • Actuator Color: Black
  • Actuator Marking: No marking
  • Current Rating: 10A (AC)
  • Operating Temperature Range: -20°C to 105°C
