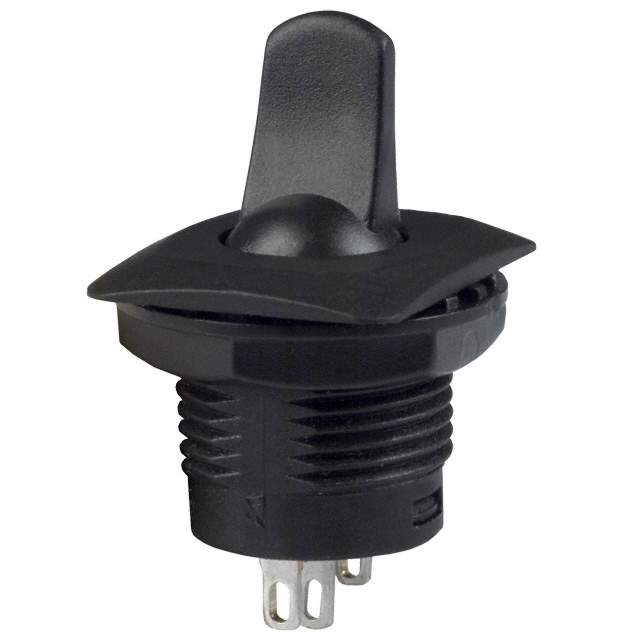

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr E-Switch
Series RR3402
Package Bulk
Mounting Type Panel Mount, Threaded Body with Nut
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 6A (AC)
Voltage Rating - AC 125 V
Actuator Type Paddle
Color - Actuator/Cap Black
Actuator Marking No Marking
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 15.00mm Dia
Temperature Range - Operating 0°C ~ 65°C
Mechanical Life 20,000 Cycles
Electrical Life 6,000 Cycles
Base Product Number RR3402
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names PS4202C,EG1893,F030004
Standard Package 100
Win Source Part Number 1087792-RR3402C
Ultra Librarian 3D Model Ultra Librarian RR3402C CAD Model

Description

The E-Switch RR3402 series SPDT standard switch is an ideal choice for various applications.

  • Current rating: 6A (AC)
  • Voltage rating: 125V (AC)
  • Operating temperature range: 0°C to 65°C
  • Actuator type: Paddle
  • Actuator/cap color: Black
  • Electrical life: 6,000 cycles
  • Mechanical life: 20,000 cycles
  • Mounting type: Panel mount, threaded body with nut
  • Panel cutout: Circular 15.00mm dia
  • Popularity: Medium
