A8GS-D1285 Omron
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Series A8GS
Packaging Bulk
Circuit DPST
Switch Function On-Off
Current Rating 16A (AC)
Voltage Rating - AC 125V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking O -
Mounting Panel Mount, Snap-In
Termination Style Quick Connect - 0.187" (4.7mm)
Features Remote Reset Function
Panel Cutout Dimensions Rectangular - 27.70mm x 15.20mm
Operating Temperature Range -10°C ~ 55°C
Mechanical Life 30,000 Cycles
Electrical Life 10,000 Cycles
Win Source Part Number 794023-A8GS-D1285
Popularity Medium
Supply and Demand Status Limited
Family Name A8GS
Introduction Date March 21, 2013
ECCN EAR99
Country of Origin Indonesia
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian A8GS-D1285 CAD Model

Description

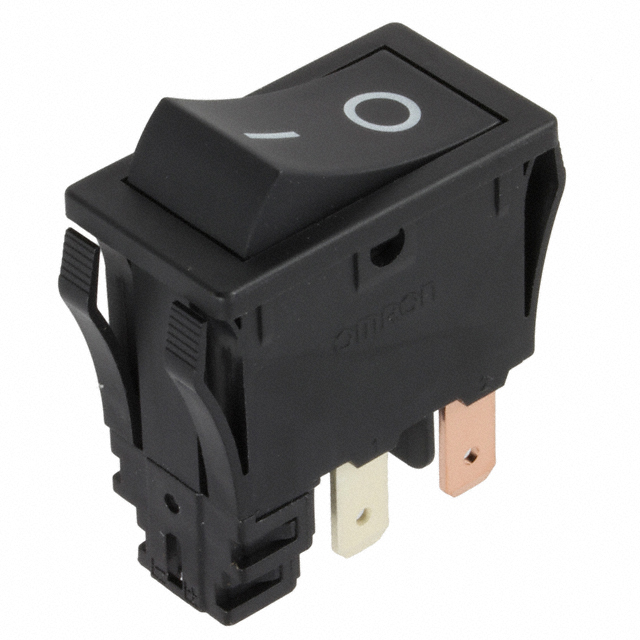

The A8GS Switch from Omron is a DPST circuit switch with on-off switch function.

  • Switch Function: On-Off
  • Remote Reset: Yes
  • Actuator Type: Concave (curved)
  • Voltage Rating: 125V AC
  • Current Rating: 16A (AC)
  • Mounting Type: Panel Mount, Snap-In
  • Panel Cutout Dimensions: 27.70mm x 15.20mm
  • Operating Temperature Range: -10°C to 55°C
  • Electrical Life: 10,000 cycles
  • Mechanical Life: 30,000 cycles
  • Package Type: Bulk
  • Termination Style: Quick Connect - 0.187" (4.7mm)
  • Category: Switch
  • ECCN: EAR99
  • Supply and Demand Status: Limited
  • Introduction Date: March 21, 2013
  • Estimated EOL Date: 2029
  • Country of Origin: Indonesia
