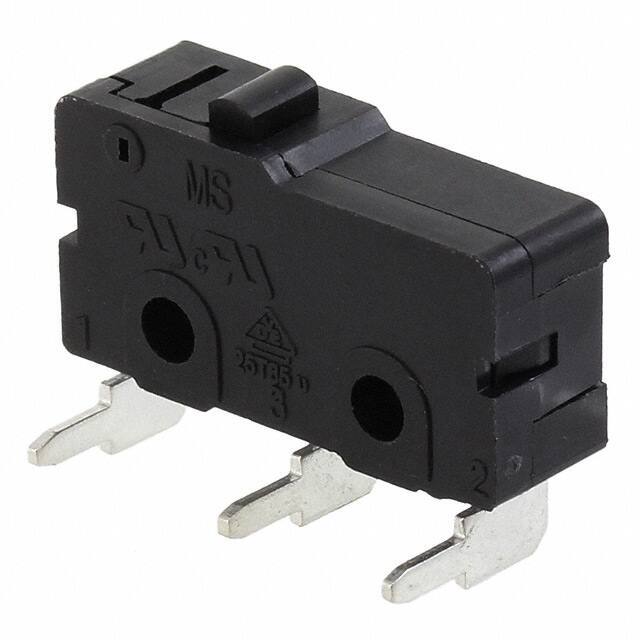

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr E-Switch
Series MS
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Round (Pin Plunger)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Ingress Protection -
Features -
Operating Force 80gf
Release Force 25gf
Operating Position 0.335" (8.5mm)
Pretravel 0.043" (1.1mm)
Differential Travel -
Overtravel -
Temperature Range - Operating -25°C ~ 85°C
Electrical Life 50,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number MS0850500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1376156-MS0850500F080V2A
Ultra Librarian 3D Model Ultra Librarian MS0850500F080V2A CAD Model

Description

The MS0850500F080V2A limit switch from E-Switch is a high-quality component suitable for a wide range of electronic applications.

  • Current Rating: 5A (AC)
  • Voltage Rating AC: 125V
  • Circuit: SPDT
  • Switch Function: On-Momentary
  • Actuator Type: Round (Pin Plunger)
  • Mounting Type: Through Hole, Right Angle
  • Operating Temperature: -25°C ~ 85°C
  • Mechanical Life: 1,000,000 Cycles
  • Electrical Life: 50,000 Cycles
  • Product Status: Active
