ON Semiconductor SRF1560 Product Overview

The SRF1560 from ON Semiconductor is a robust and efficient Schottky rectifier designed for high-performance applications that require low voltage drop and high current capability. This state-of-the-art component is ideally suited for use in power supply designs, DC-DC converters, and high-frequency rectification circuits.

Key Features

• High Current Capability: The SRF1560 is capable of handling a high forward surge current, making it suitable for applications that experience transient overloads.
• Low Forward Voltage Drop: Featuring a low forward voltage drop, this Schottky rectifier ensures high efficiency in power conversion, which is critical for minimizing heat dissipation and improving overall system performance.
• High Frequency Operation: Designed for very high frequency operation, the SRF1560 is perfect for switch-mode power supplies and other applications where efficiency is key.
• Guard Ring Die Construction: The guard ring die construction provides enhanced ruggedness and long-term reliability, which is essential for industrial and automotive applications.
• RoHS Compliant: The SRF1560 is compliant with the RoHS directive, making it suitable for use in environmentally sensitive applications.

Applications

• Switch-mode Power Supplies (SMPS)
• DC-DC Converters
• Free-Wheeling Diodes
• Power Factor Correction (PFC) Circuits
• Reverse Battery Protection

Technical Specifications

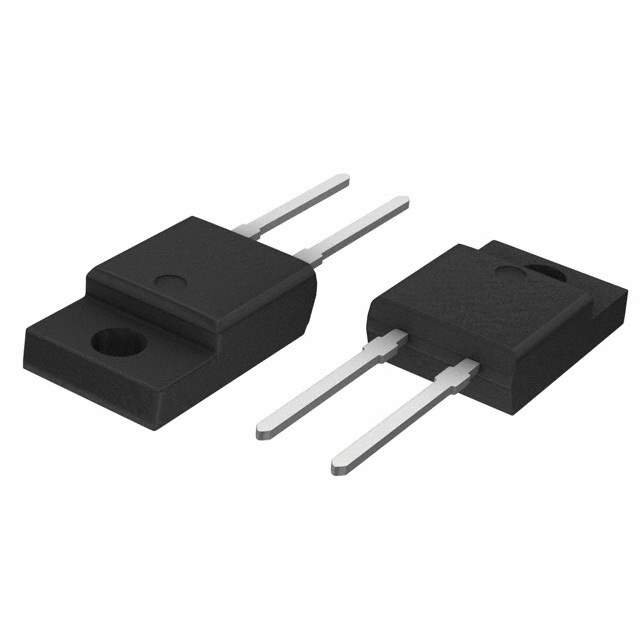

• Package: TO-220F
• Maximum Repetitive Reverse Voltage (V<sub>RRM): 60V
• Maximum Continuous Forward Current (I<sub>F): 15A
• Forward Voltage (V<sub>F): 0.55V at 15A
• Operating Junction Temperature Range: -55°C to +150°C

With its combination of efficiency, reliability, and high-current handling capability, the SRF1560 is an excellent choice for engineers and designers looking to enhance the performance of their power management systems. ON Semiconductor's commitment to quality ensures that the SRF1560 will deliver the performance expected in the most demanding applications.
