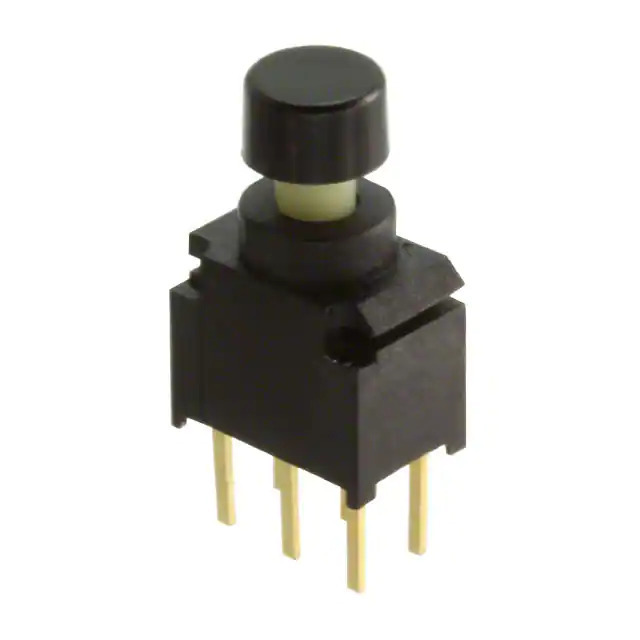

800UDP8P1A1M2RER1BLK E-Switch
Same model may have multiple batches, images only for reference.

800UDP8P1A1M2RER1BLK

Part No 800UDP8P1A1M2RER1BLK
Manufacturer E-Switch
Catalog Pushbutton Switches
Description SWITCH PUSH DPDT 0.4VA 20V / Pushbutton Switch DPDT Standard Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr E-Switch
Series 800U
Package Tube
Product Status Active
Mounting Type Through Hole
Type Standard
Circuit DPDT
Switch Function On-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Round, Button
Actuator Marking No Marking
Color - Actuator/Cap Black
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Ingress Protection IP67 - Dust Tight, Waterproof
Features Epoxy Sealed Terminals
Panel Cutout Dimensions -
Temperature Range - Operating -30°C ~ 85°C
Mechanical Life 40,000 Cycles
Electrical Life 6,000 Cycles
Base Product Number 800UDP8
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1355859-800UDP8P1A1M2RER1BLK
Ultra Librarian 3D Model Ultra Librarian 800UDP8P1A1M2RER1BLK CAD Model

Description

The 800UDP8P1A1M2RER1BLK pushbutton switch from E-Switch is a high-quality electronic component suitable for various applications.

  • Temperature Range: -30°C to 85°C
  • Circuit: DPDT
  • Switch Function: On-Mom
  • Current Rating: 0.4VA (AC/DC)
  • Voltage Rating: 20V (AC/DC)
  • Terminals: Epoxy Sealed
  • Mounting: Through-Hole
  • Mechanical Life: 40,000 Cycles
  • Electrical Life: 6,000 Cycles
  • Actuator Type: Round, Button
  • Color: Black
