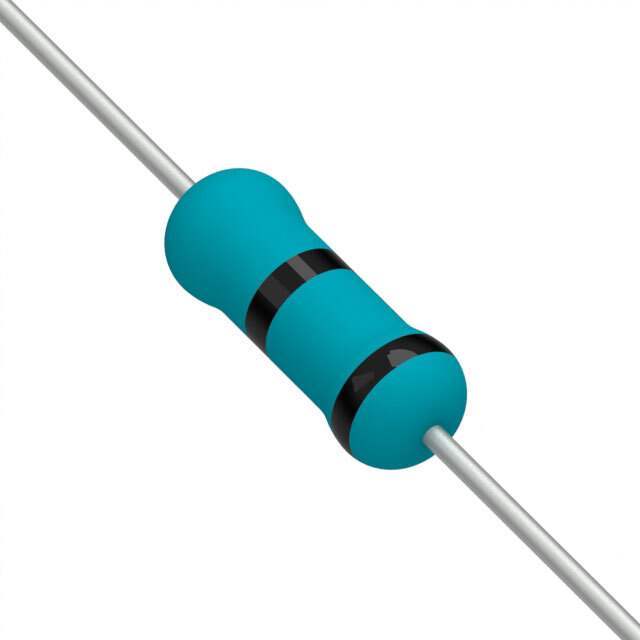

Same model may have multiple batches, images only for reference.

SFR25000Z0000ZA100

Name: SFR25000Z0000ZA100
Brand: Draloric
SKU: WS1307684
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SFR25000Z0000ZA100
Manufacturers	Draloric , Vishay
Catalog	Through Hole Resistors
Description	RES 0 OHM 0.4W JUMP AXIAL
Datasheet	SFR25000Z0000ZA100 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1307684-SFR25000Z0000ZA100
Manufacturer	Vishay
Category	Resistors>Through Hole Resistors
Packaging	Tape & Box (TB)
Part Status	Obsolete
Resistance (Ohms)	0 Ohms
Tolerance (+ or -)	Jumper
Power (Watts)	0.4W
Composition	Metal Film
Operating Temperature	-55°C ~ 155°C
Size / Dimension	0.098" Dia x 0.256" L (2.50mm x 6.50mm)
Ultra Librarian 3D Model	Ultra Librarian SFR25000Z0000ZA100 CAD Model

Alternative Products

Description

A homogeneous film of metal alloy is deposited on a high grade ceramic body. After a helical groove has been cut in the resistive layer, tinned connecting leads of electrolytic copper are welded to the end-caps. The resistors are coated with a colored lacquer (light-blue for type SFR16S; light-green for type SFR25 and red-brown for type SFR25H) which provides electrical, mechanical, and climatic protection. The encapsulation is resistant to all cleaning solvents in accordance with IEC 60068-2-45.
