Same model may have multiple batches, images only for reference.

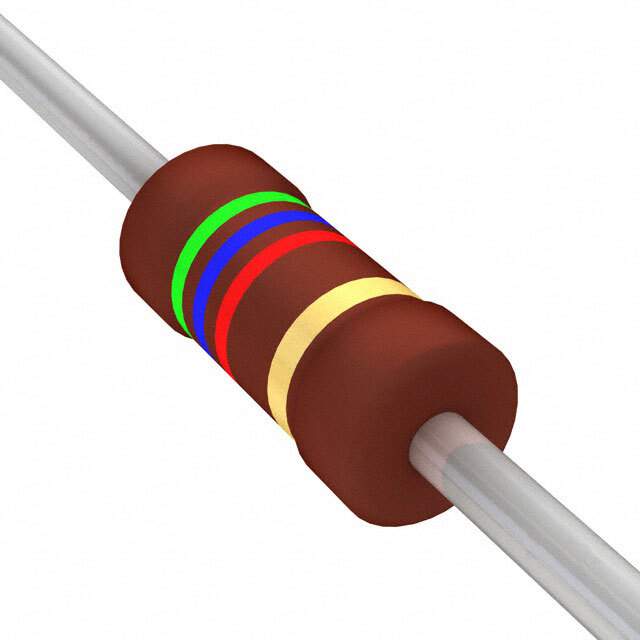

PR01000105601JR500 Real Image
Same model may have multiple batches, images only for reference.

PR01000105601JR500

Part No PR01000105601JR500
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 5.6K OHM 1W 5% AXIAL / 5.6 kOhms ±5% 1W Through Hole Resistor Axial Automotive AEC-Q200, Flame Retardant Coating, Safety Metal Film
Datasheet
PR01000105601JR500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series PR01
Package Tape & Reel (TR),Cut Tape (CT)
Resistance 5.6 kOhms
Tolerance ±5%
Power (Watts) 1W
Composition Metal Film
Features Automotive AEC-Q200, Flame Retardant Coating, Safety
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.098" Dia x 0.256" L (2.50mm x 6.50mm)
Number of Terminations 2
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Other Names BC5.6KW-1CT,PPC5.6KW-1TR,2306 197 23562,5073NW5K600J12AFX,230619723562,PPC5.6KW-1TR-NDR,BC5.6KW-1TR,5073NW5K600J12AFXBC,BC5.6KW-1CT-ND,PPC5.6KW-1CT-NDR,BC5.6KW-1CTINACTIVE,PPC5.6KW-1CT,BC5.6KW-1TRINACTIVE,5073NW5K600JAFX,BC5.6KW-1TR-ND
Standard Package 5,000
Win Source Part Number 972123-PR01000105601JR500
Ultra Librarian 3D Model Ultra Librarian PR01000105601JR500 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components electronic component is a resistive component that is ideal for use in automotive applications.

  • Resistance: 5.6 kOhms
  • Power Rating: 1W
  • Tolerance: ±5%
  • Composition: Metal film
  • Temperature Range: -55°C to 155°C
  • Package: Axial package/case
  • Package: 5,000
  • Feature: Flame retardant coated
  • Feature: Safety features
