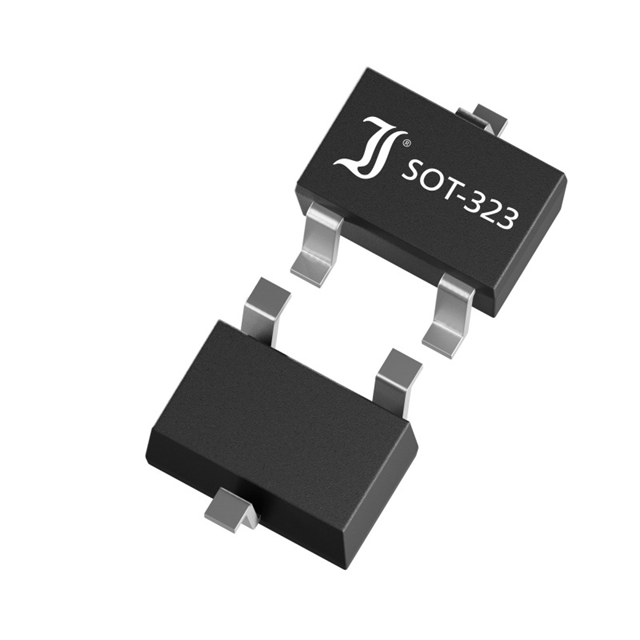

BAV70W-AQ Real Image
Same model may have multiple batches, images only for reference.

BAV70W-AQ

Part No BAV70W-AQ
Manufacturer DIOTEC Electronics Corporation
Catalog Diodes, Rectifiers - Arrays
Description Small SD, 75V, 0.17A, 4ns / Diode Array 1 Pair Common Cathode Standard 75 V 175mA Surface Mount SC-70, SOT-323
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Diotec Semiconductor
Package Tape & Reel (TR)
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 75 V
Current - Average Rectified (Io) (per Diode) 175mA
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 150 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 2.5 µA @ 75 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting SMD (SMT)
Package / Case SC-70, SOT-323
Supplier Device Package SOT-323
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH info available upon request
HTSUS 8541.10.0200
Other Names 2796-BAV70W-AQTR,2721-BAV70W-AQTR
Standard Package 30
Win Source Part Number 969566-BAV70W-AQ
Ultra Librarian 3D Model Ultra Librarian BAV70W-AQ CAD Model

Description

The Diotec Semiconductor component with Win Source Part Number 969566-BAV70W-AQ is a small signal diode that comes in a tape and reel package from Diotec Semiconductor.

  • Standard package: 30
  • Mounting: SMD (SMT)
  • Diode type: standard
  • Voltage - DC reverse (Vr) (Max): 75 V
  • Voltage - forward (Vf) (Max) @ If: 1.25 V @ 150 mA
  • Reverse recovery time (trr): 4 ns
  • Current - reverse leakage @ Vr: 2.5 µA @ 75 V
  • Operating temperature - junction: -55°C ~ 150°C
  • Diode configuration: 1 Pair Common Cathode
  • Current - average rectified (Io) (per diode): 175mA
  • Package / case: SC-70, SOT-323
  • Supplier device package: SOT-323
