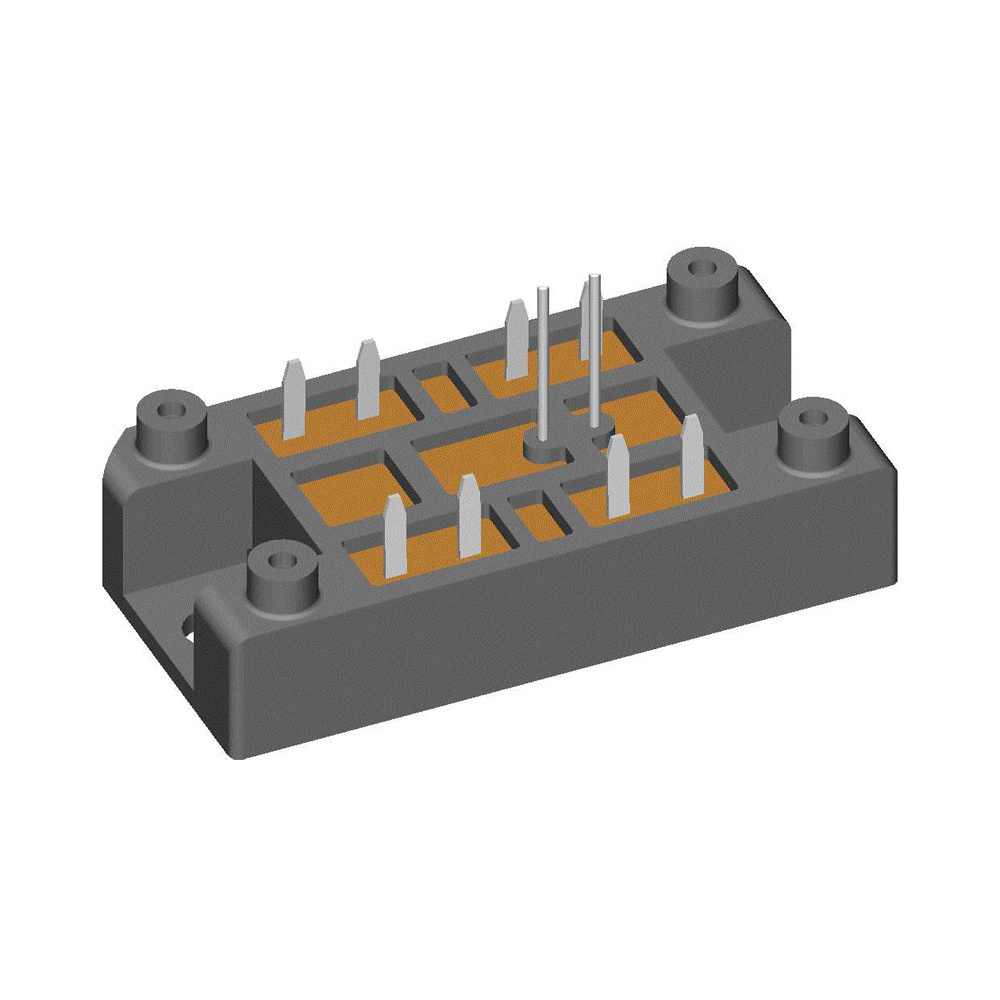

Same model may have multiple batches, images only for reference.
VS-VSKD56/12 Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

VS-VSKD56/12

Part No VS-VSKD56/12
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE MOD GP 1200V 30A ADDAPAK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Diode Configuration 1 Pair Common Cathode
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) (per Diode) 30A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 mA @ 1200 V
Operating Temperature - Junction -40°C ~ 150°C
Mounting Type Chassis Mount
Case / Package ADD-A-PAK (3)
Supplier Device Package ADD-A-PAK®
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1494274-VS-VSKD56/12
Ultra Librarian 3D Model Ultra Librarian VS-VSKD56/12 CAD Model
