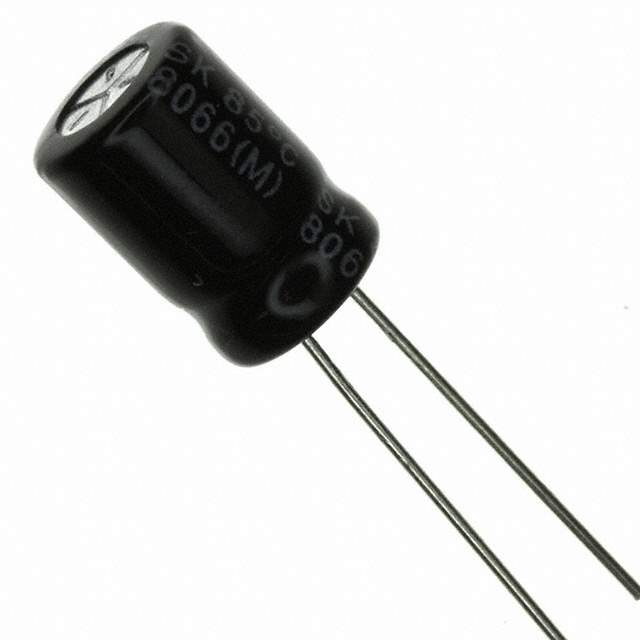

SK4R7M250ST Real Image
Same model may have multiple batches, images only for reference.

SK4R7M250ST

Part No SK4R7M250ST
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Datasheet
SK4R7M250ST Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SK
Package Bulk
Capacitance 4.7 µF
Tolerance ±20%
Voltage - Rated 250 V
ESR (Equivalent Series Resistance) 42.35Ohm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -25°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 45 mA @ 120 Hz
Ripple Current @ High Frequency 63 mA @ 1 kHz
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1308157-SK4R7M250ST
Ultra Librarian 3D Model Ultra Librarian SK4R7M250ST CAD Model

Description

The Cornell Dubilier Electronics (CDE) SK4R7M250ST capacitor is a high-quality aluminum electrolytic capacitor with a capacitance of 4.7 µF and a voltage rating of 250 V.

  • Capacitance: 4.7 µF
  • Voltage Rating: 250 V
  • Polarized: Yes
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 42.35Ohm @ 120Hz
  • Series: SK series capacitor
  • Designed for: general purpose use
  • Height: 0.512" (13.00mm)
  • Mounting: through-hole
  • Package: radial, can
  • Lifetime: 2000 Hrs @ 85°C
