Product Overview: SBR02M30LP-7 from Diodes Incorporated

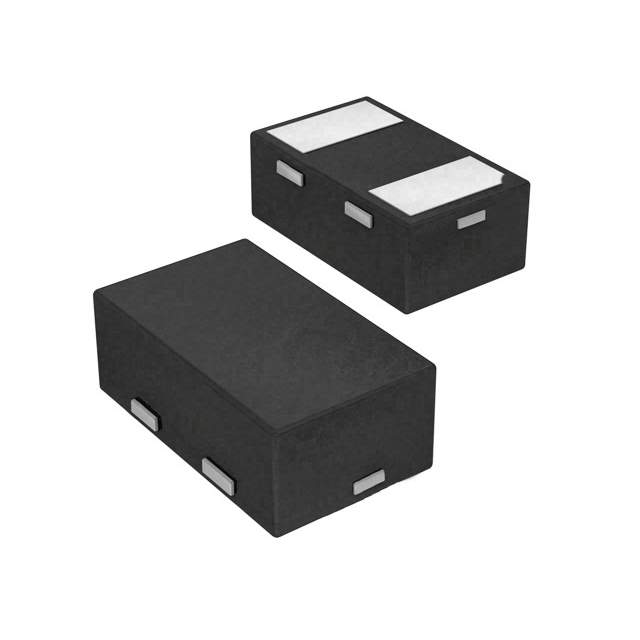

The SBR02M30LP-7 is a state-of-the-art Super Barrier Rectifier (SBR) from Diodes Incorporated, designed to provide superior performance in a compact, low-profile package. This rectifier is specifically engineered to meet the demands of high-efficiency power supply applications, offering a combination of low forward voltage drop and high current handling capability.

Key Features

• Low Power Loss: The SBR02M30LP-7 features a low forward voltage drop, which translates to reduced power loss during operation. This makes it an ideal choice for energy-sensitive applications.
• High Surge Capability: With its robust construction, this rectifier is capable of withstanding high surge currents, ensuring reliability and longevity even under stressful conditions.
• Low Profile Package: Encased in a PowerDI™ 123 package, the SBR02M30LP-7 has an ultra-low profile of 0.8mm, making it suitable for slim and compact electronic assemblies.
• Lead-Free and RoHS Compliant: This product is manufactured using environmentally friendly materials and processes, complying with RoHS standards and minimizing the impact on the environment.

Electrical Characteristics

• Maximum Recurrent Peak Reverse Voltage: 30V
• Maximum RMS Voltage: 21V
• Maximum DC Blocking Voltage: 30V
• Maximum Average Forward Rectified Current: 0.2A at TL (Lead Temperature) = 110°C
• Peak Forward Surge Current: 3A, 8.3ms single half sine-wave superimposed on rated load (JEDEC method)
• Operating and Storage Temperature Range: -55°C to +150°C

Applications

The SBR02M30LP-7 is versatile and can be used in a variety of applications, including:

• DC/DC converters
• LED lighting
• Power management functions
• Battery charging circuits
• Reverse polarity protection

With its advanced SBR technology, the SBR02M30LP-7 from Diodes Incorporated is an excellent choice for designers looking to enhance the efficiency and reliability of their power supply designs. Its compact form factor and robust performance make it suitable for a wide range of electronic devices and systems.
