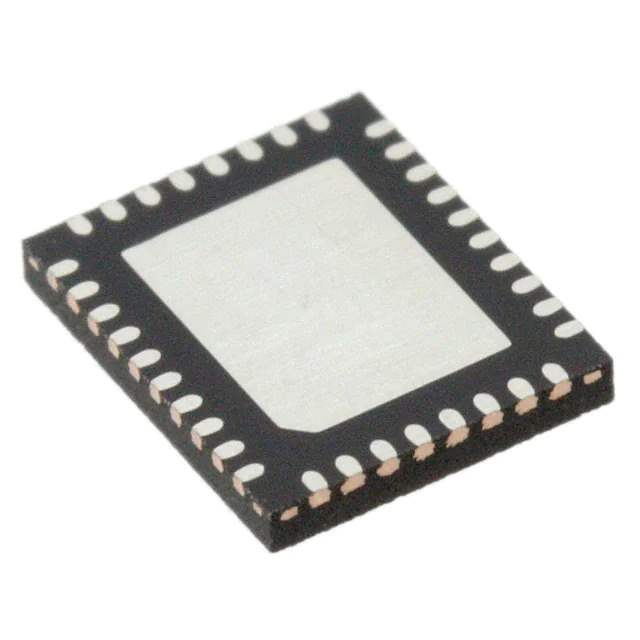

Introducing the PI2EQXDP101-AZFE from Diodes Incorporated

The PI2EQXDP101-AZFE is a state-of-the-art redriver from Diodes Incorporated, designed to enhance signal integrity and performance in high-speed digital interfaces. This advanced redriver is specifically tailored for applications that utilize DisplayPort 1.2, offering an optimal solution for systems that require signal conditioning to maintain signal quality over extended cable lengths or through connectors.

Key Features

• DisplayPort 1.2 Compatible: The device fully supports the DisplayPort 1.2 standard, ensuring compatibility with a wide range of devices and systems.
• High-Speed Performance: With capabilities to handle data rates up to 5.4 Gbps per lane, the PI2EQXDP101-AZFE is well-suited for high-resolution video applications.
• Signal Conditioning: The redriver provides programmable equalization, output swing, and flat gain to compensate for channel losses and to optimize performance over various physical mediums.
• Low Power Consumption: Designed with power efficiency in mind, the device offers a low-power standby mode to conserve energy when not in active use.
• Transparent Operation: The PI2EQXDP101-AZFE operates transparently to the link, with no need for configuration, which simplifies design and integration.
• Enhanced Electromagnetic Interference (EMI) Performance: The device includes advanced features to minimize EMI, a critical factor in maintaining signal integrity in sensitive applications.

Applications

The PI2EQXDP101-AZFE is ideal for use in a variety of applications that demand high-speed data transmission and pristine signal integrity. These include:

• Desktop and laptop computers
• Docking stations
• Digital signage
• Professional AV systems
• High-definition video conferencing systems

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the PI2EQXDP101-AZFE is no exception. It is built to meet the rigorous standards required by modern digital systems, ensuring reliability and performance. Whether for commercial or industrial applications, this redriver is an excellent choice for designers looking to enhance their system's signal integrity without sacrificing power efficiency or performance.

With its robust feature set and Diodes Incorporated's reputation for quality, the PI2EQXDP101-AZFE is a versatile and reliable solution for any application requiring high-speed data transmission and signal conditioning.
